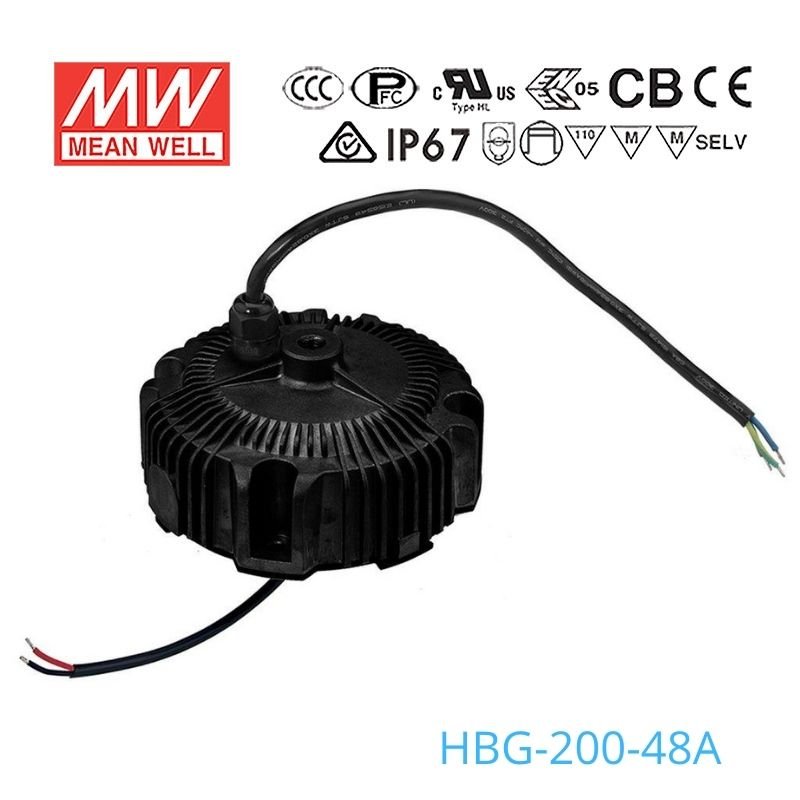

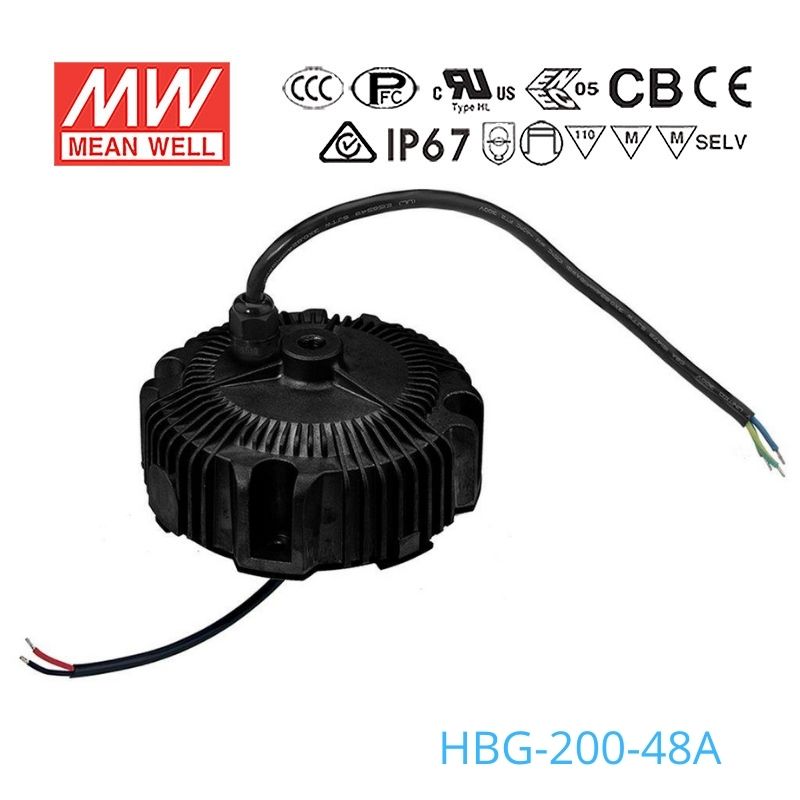

Mean Well HBG-200-48A Power Supply 200W 48V - Adjustable
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating196.8 Watt
-
Output Voltage48 Volt
-
Rated Current4.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-48A for a 48V warehouse or high bay LED fixture?
Yes, this driver supports constant current LED loads across 28-48V with 4.1A output current and 196.8W maximum power. Its listed use for high and low bay lighting matches that kind of fixture.
Is the HBG-200-48A a fit for 48V sign lighting in a covered outdoor location?
It can be used for 48V sign lighting if the connected load stays within 196.8W and the 28-48V constant current range. Because it is IP65 water-resistant, it is better suited to protected outdoor areas than direct water exposure.
Can this model be used for 48V canopy or sheltered exterior lighting?
Yes, for 48V constant current fixtures that fit within 28-48V and draw no more than 4.1A. The IP65 rating supports water-resistant use, and the operating temperature range is -40°C to +85°C.
How much 48V LED strip can the HBG-200-48A support?
Use the 196.8W power rating to estimate the maximum run: length = 196.8W divided by the strip watts per meter. Check your strip rated power per meter before calculating, and keep the load inside the 28-48V operating range.
Is the HBG-200-48A suitable for fully exposed wet locations?
It is rated IP65 water-resistant, which is generally suited to dust protection and water spray, but not to the higher sealing level of IP67 models. Its operating temperature range is still broad at -40°C to +85°C for demanding environments.
What is the difference between the 200W HBG 48V versions and the 36V or 60V versions?
The 48V family is rated at 196.8W with a 28-48V constant current range and 4.1A output. The 36V family is 198W with 21-36V and 5.5A, while the 60V family is 198W with 36-60V and 3.3A.
