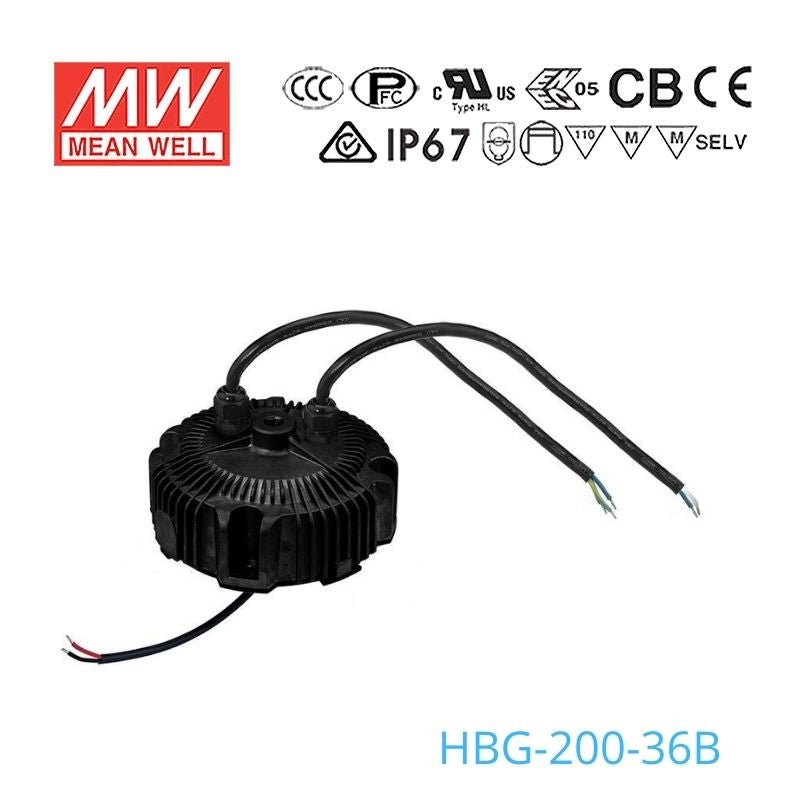

Mean Well HBG-200-36B Power Supply 200W 36V - Dimmable
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage36 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-36B for a 36V LED high bay fixture?
Yes, this driver is built for constant current operation with a 21-36V output range and 5.5A output current. Its listed features specifically note high and low bay light use, and the 198W power rating fits higher-output fixtures in that voltage range.
Is this driver suitable for 36V LED signage or large channel letter lighting?
It can be used for 36V LED signage loads if the total load stays within 198W and within the 21-36V constant current range. For wet or exposed sign enclosures, the IP67 waterproof rating adds protection against water and dust.
Can the HBG-200-36B power a 36V architectural or area lighting fixture outdoors?
Yes, the IP67 waterproof rating and operating temperature range of -40°C to +85°C make it suitable for outdoor lighting environments when the fixture matches the 36V, 5.5A output. This makes it a fit for enclosed exterior lighting systems that need a sealed driver.
Can I use this driver for a long 36V LED strip run?
You can estimate strip length from the 198W maximum output: maximum length = 198W divided by your strip watts per meter. For example, use 198W as the ceiling and then check your strip rated power per meter to calculate the actual supported length.
Is the HBG-200-36B okay for wet or outdoor locations?
Yes, it is rated IP67 waterproof, which is suited to wet and outdoor conditions where dust sealing and water protection are needed. It is also specified for -40°C to +85°C operation, so it covers a wide temperature range.
How does the HBG-200-36B compare with other 200W HBG series voltage options?
Within the 200W family, the 36V models are rated at 198W, 21-36V, and 5.5A. The 48V versions are 196.8W, 28-48V, and 4.1A, while the 60V versions are 198W, 36-60V, and 3.3A.
