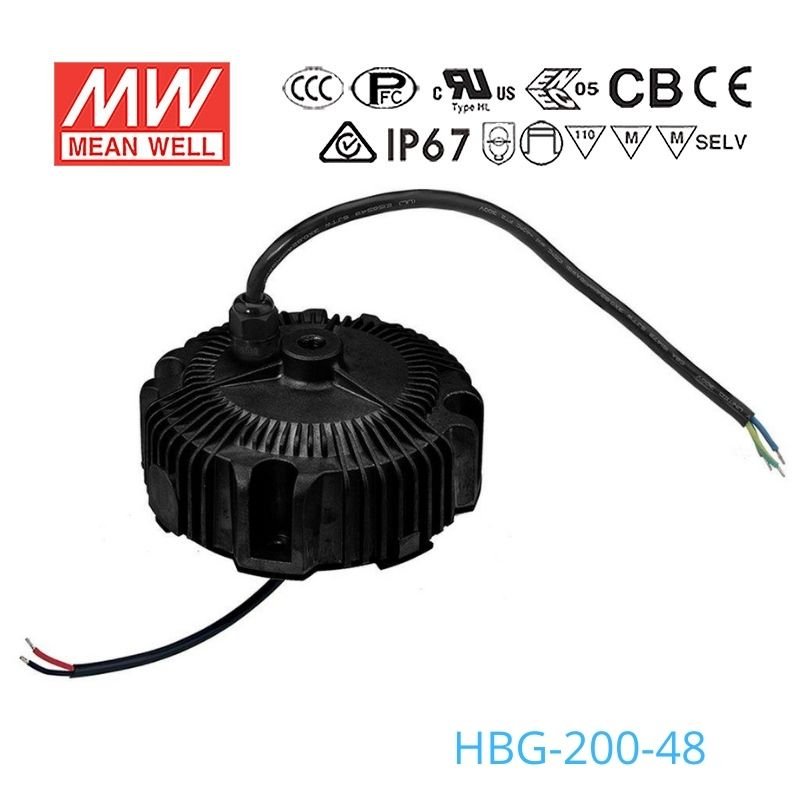

Mean Well HBG-200-48 Power Supply 200W 48V
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating196.8 Watt
-
Output Voltage48 Volt
-
Rated Current4.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-48 for a 48V LED high bay light?
Yes, this constant current driver matches 48V-class fixtures that operate within the 28-48V range and need up to 4.1A. The feature list specifically calls out high and low bay light use, and the unit is rated for 196.8W.
Is the HBG-200-48 suitable for 48V signage lighting?
It can be used for 48V signage or illuminated display loads if the total demand stays within 196.8W and the load fits the 28-48V constant current range. Its IP67 waterproof rating is useful where the sign cabinet or enclosure may be exposed to weather.
Can this driver run a 48V outdoor area or architectural light?
Yes, if the fixture is a 48V constant current load within the 28-48V range and below 4.1A. The IP67 waterproof rating and -40°C to +85°C operating temperature range make it suitable for harsh indoor or outdoor environments.
How do I estimate the maximum 48V LED strip length for this driver?
Use the driver power rating as the limit: maximum strip length = 196.8W divided by your strip watts per meter. Check your strip rated power per meter before sizing, and make sure the load stays within the 28-48V operating range.
Is the HBG-200-48 waterproof enough for outdoor use?
Yes, it carries an IP67 waterproof rating, which is intended for dust-tight and water-resistant outdoor use. It is also specified to operate from -40°C to +85°C.
How does the HBG-200-48 compare with the other 200W HBG voltage options?
The 48V version is rated at 196.8W with a 28-48V output range and 4.1A current. By comparison, the 36V models are 198W with 21-36V and 5.5A, and the 60V models are 198W with 36-60V and 3.3A.
