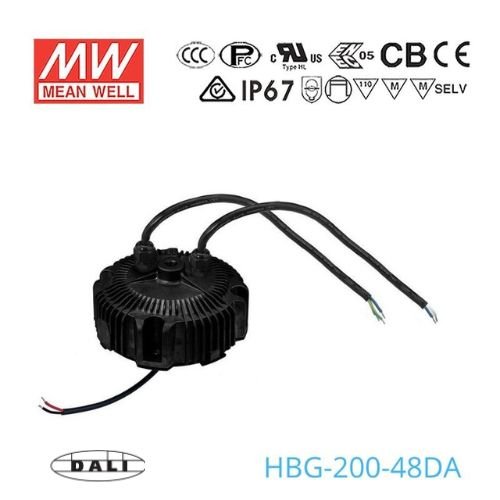

Mean Well HBG-200-48DA Power Supply 200W 48V - DALI
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating196.8 Watt
-
Output Voltage48 Volt
-
Rated Current4.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-48DA for a DALI-controlled 48V high bay fixture?
Yes, if the fixture's LED load operates in the 28-48V constant current range. This model delivers up to 4.1A and 196.8W, which fits 48V-class high bay and low bay lighting assemblies in that range.
Is the HBG-200-48DA a fit for 48V signage lighting with DALI control?
It can be, provided the signage load is a 48V constant current system that stays within 28-48V and does not exceed 196.8W or 4.1A. The DA version is intended for applications where DALI control is part of the lighting system.
Can this driver be used for outdoor 48V area or canopy lighting?
Yes, when the LED load matches the 28-48V constant current range and the total demand stays within 196.8W. Its IP67 rating makes it suitable for outdoor lighting environments where weather exposure is a factor.
How much 48V LED strip can the HBG-200-48DA support?
The maximum available output power is 196.8W. The math is: maximum strip length = 196.8W divided by the strip's watts per meter, and you should verify the strip is a 48V constant current product that operates within 28-48V.
Is the HBG-200-48DA suitable for wet or exposed outdoor locations?
Yes, this model is rated IP67 waterproof, so it is suited to wet and outdoor conditions. It is also specified for operation from -40°C to +85°C.
How does the HBG-200-48DA compare with other DALI 48V HBG models?
In the 48V DA range, HBG-100-48DA is 96W at 2A, HBG-160-48DA is 158.4W at 3.3A, HBG-200-48DA is 196.8W at 4.1A, and HBG-240-48DA is 240W at 5A. These all use the same 28-48V constant current range, with output power and current increasing by model size.
