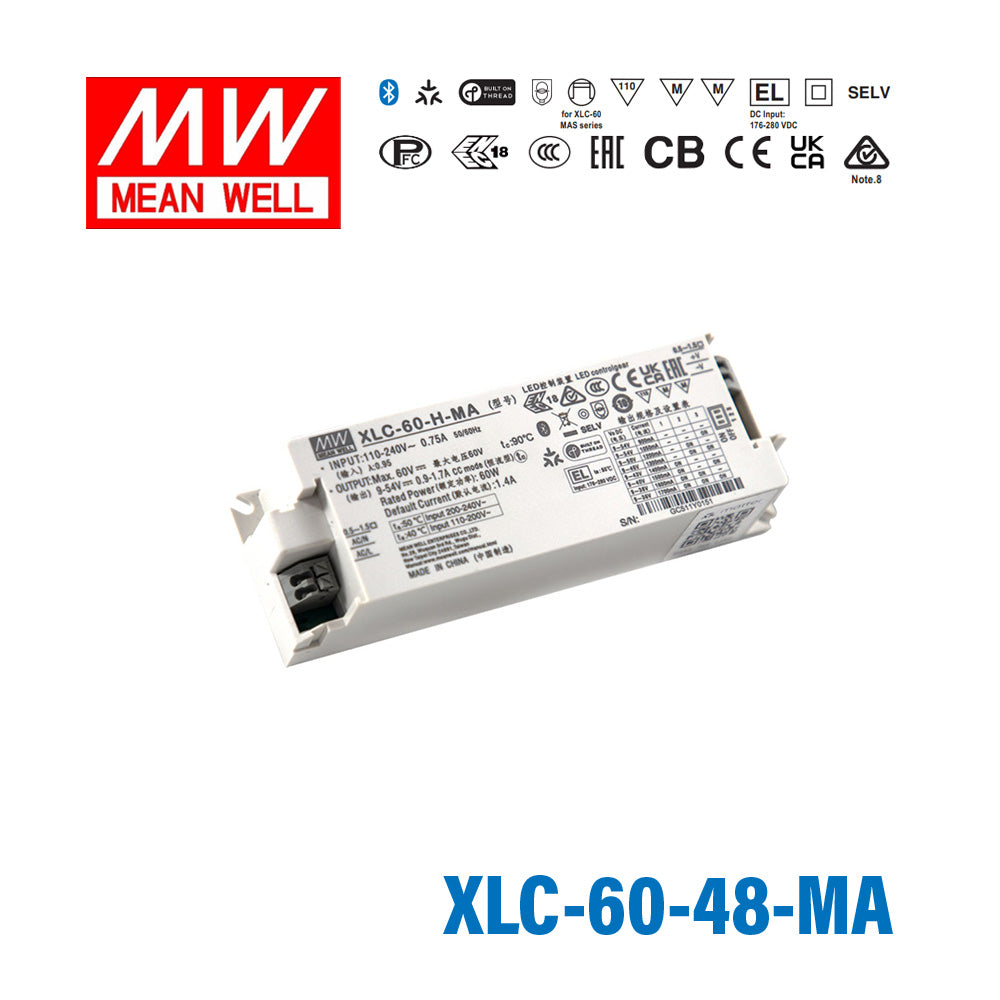

Mean Well XLC-60-48-MA LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming 1mA

The Mean Well XLC-60-48-MA is a 60W constant voltage LED driver with a regulated output of 48V DC. It is housed in a built-in type plastic housing, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-60-48-MA operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports Matter over Thread control to the Matter 1.3 specification. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

• ✓Constant voltage mode output (12/24/48V)
• ✓Plastic housing with class II and PFC design
• ✓Flicker free, complying with CE ErP directive
• ✓Minimum dimming level 0.1% (12/24/48V)
• ✓Matter over thread, Matter 1.3 specification
• ✓5 years warranty

• Brand
  Mean Well
• Series
  Mean Well XLC Series
• Power Rating
  60 Watt
• Output Voltage
  48 Volt
• Rated Current
  0.00 Ampere
• Input Voltage
  100V~305V
• No of Output
  1
• Dimming Control
  Dimmable
• Standards Met
  CB,CCC,CE,EAC,ENEC,SELV
• Operation Mode
  Constant Voltage
• Operating Temperature
  -25°C~90°C
• Warranty
  5 Year
• Length
  5.35 in
• Width
  1.77 in
• Height
  1.26 in
• Weight
  0.71 lb
