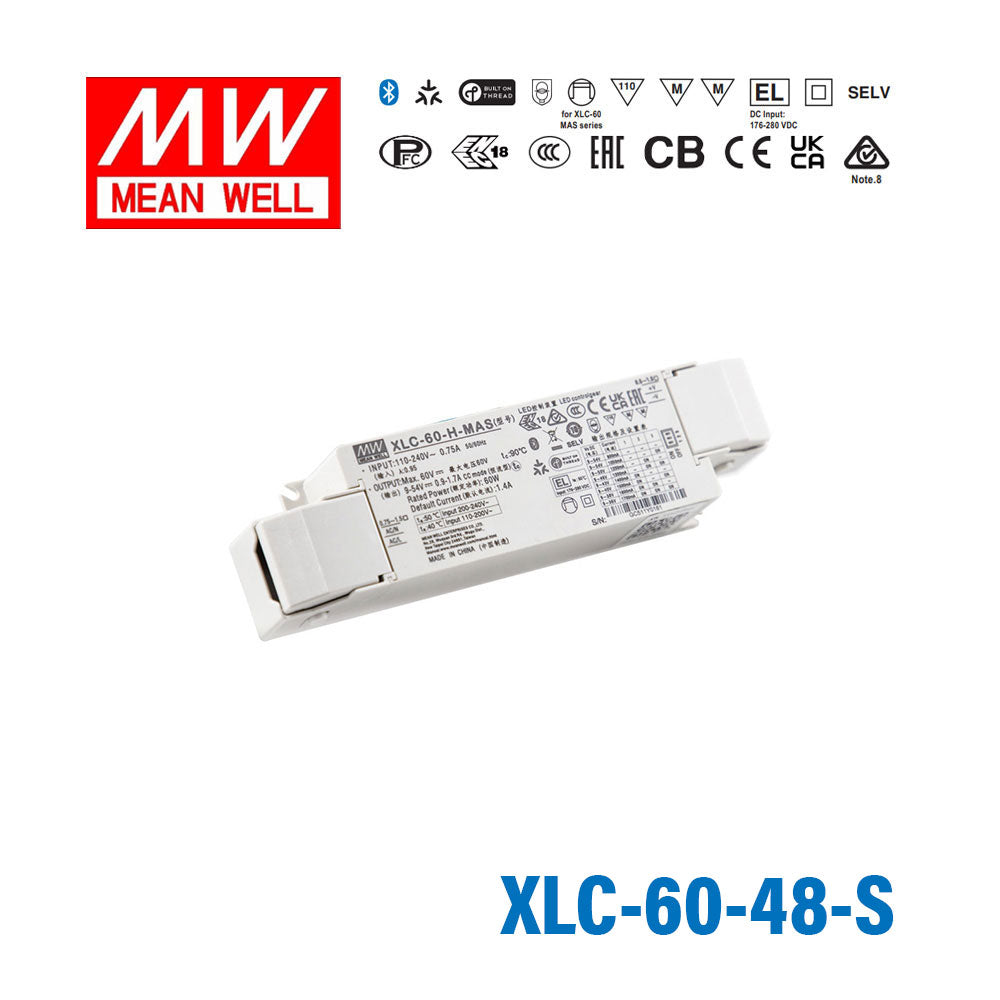

Mean Well XLC-60-48-S LED Driver 60W 48V with Strain-relief
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-48-S to drive 48V LED strip lighting in a retail or architectural setting?
Yes, the XLC-60-48-S is suitable for powering 48V LED strips in retail fixtures, cove lighting, and architectural installations. It provides 60W at 48V with flicker-free constant voltage output, and its strain-relief fitting makes it easier to route cables securely in finished ceiling or wall assemblies.
Is the XLC-60-48-S appropriate for powering 48V LED modules in illuminated signage?
The XLC-60-48-S can supply 48V LED modules used in channel letter and backlit signage up to a combined 60W load. The Class II, built-in rated design simplifies integration into sign enclosures, and the strain-relief fitting helps protect the cable where it exits the housing under mechanical stress.
How does the XLC-60-48-S differ from the standard XLC-60-48?
The XLC-60-48-S and XLC-60-48 are electrically identical — both output 60W at 48V, 1.25A with a 110–305VAC input range and the same 176mm × 32mm × 45mm dimensions. The only difference is that the XLC-60-48-S includes a factory-fitted strain-relief cable fitting, which mechanically secures the output cable and reduces wear at the housing exit point.
How much 48V LED strip can the XLC-60-48-S support?
The XLC-60-48-S delivers a maximum of 60W at 48V. The supported strip length depends on your strip's wattage per meter — for instance, a 10W/m strip allows up to 6 meters, while an 8W/m strip allows up to 7.5 meters. Check your specific strip's rated power per meter to calculate the actual maximum run.
Can the XLC-60-48-S be mounted inside a luminaire or enclosed fixture?
Yes, the XLC-60-48-S is designated for built-in use and operates across -25°C to +90°C, making it compatible with the thermal environment inside enclosed luminaires. The strain-relief fitting also helps manage cable routing in tight fixture interiors. It is not IP-rated, so it must be shielded from moisture in damp or outdoor locations.
