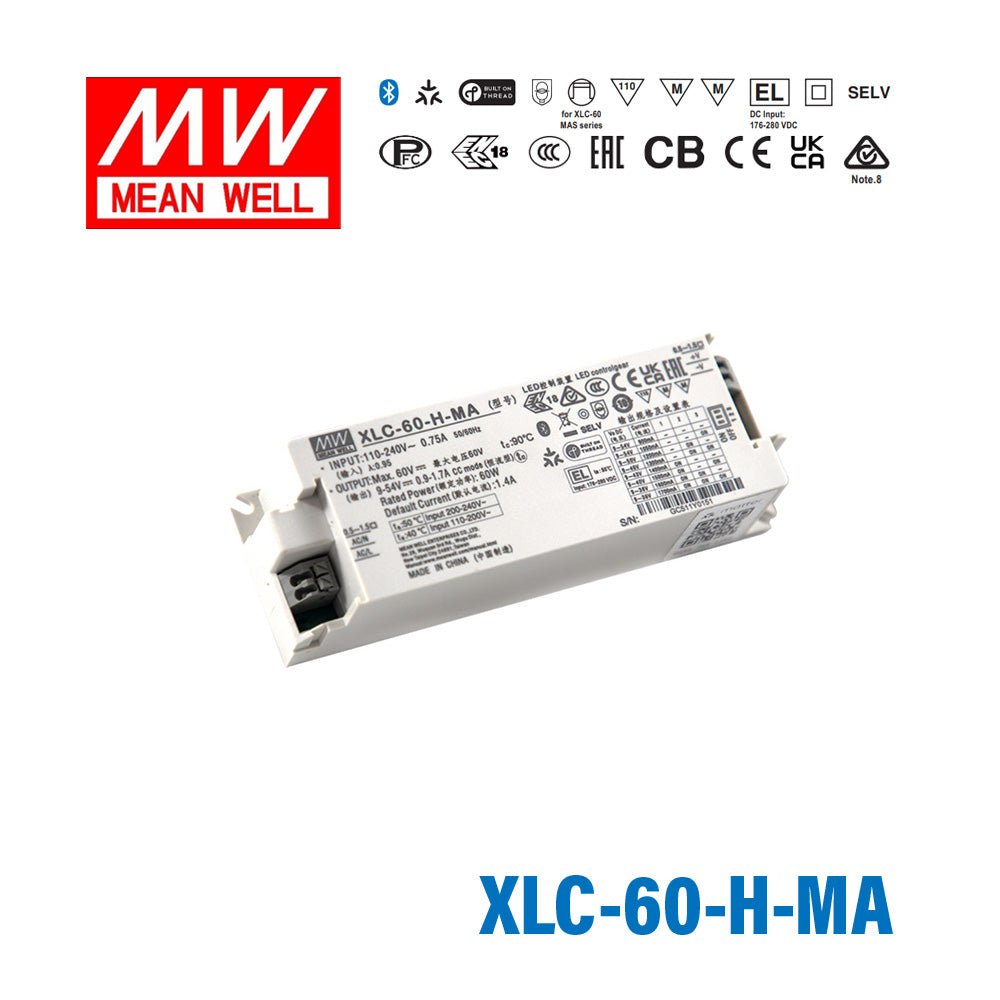

Mean Well XLC-60-H-MA LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-MA LED Driver 60W 1400mA 9~54V Constant Power, C...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.35 in
-
Width1.26 in
-
Height1.77 in
-
Weight0.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-H-MA be controlled wirelessly using a Matter-compatible smart home hub?
Yes, the XLC-60-H-MA supports Matter 1.3 wireless dimming, enabling direct control from any Matter-compatible ecosystem including Apple Home, Google Home, or Amazon Alexa. This allows dimming of connected LED loads without dedicated dimming wires beyond the Matter network.
Is the XLC-60-H-MA suitable for residential LED downlight installations that need to integrate with a smart home platform?
The XLC-60-H-MA is designed for built-in use and supports Matter 1.3, making it well-suited for residential smart lighting installations where LED downlights need to be integrated into a Matter-based smart home system. Its 60W output and 9–54V CC range accommodate typical residential LED downlight strings.
Can the XLC-60-H-MA drive LED arrays in office lighting retrofits that use a wireless lighting control system?
With Matter 1.3 wireless dimming and an adjustable current range of 0.9–1.7A, the XLC-60-H-MA can support office LED array retrofits controlled through Matter-based wireless lighting systems. The flicker-free rating is also relevant for office environments where screen-compatible lighting is required.
How many LEDs can the XLC-60-H-MA power in a series string?
The driver delivers constant current over a 9–54V range; the actual number of series LEDs depends on each LED's individual forward voltage and cannot be specified as a fixed count. Ensure your series string's total forward voltage falls within the 9–54V CC window.
What is the operating temperature range of the XLC-60-H-MA, and is it appropriate for attic or ceiling void installations?
The XLC-60-H-MA is rated from -25°C to +90°C, making it suitable for ceiling voids or attics that may experience elevated temperatures in summer. It is listed for built-in use; ensure adequate ventilation per your installation requirements.
How does the XLC-60-H-MA compare to the XLC-60-H-MAS?
Both are 60W, 1400mA constant current drivers with Matter 1.3 wireless dimming and a 9–54V CC range. The XLC-60-H-MAS adds a strain-relief fitting and is physically longer (176mm vs 136mm for the MA), which can simplify cable management in some enclosures.
