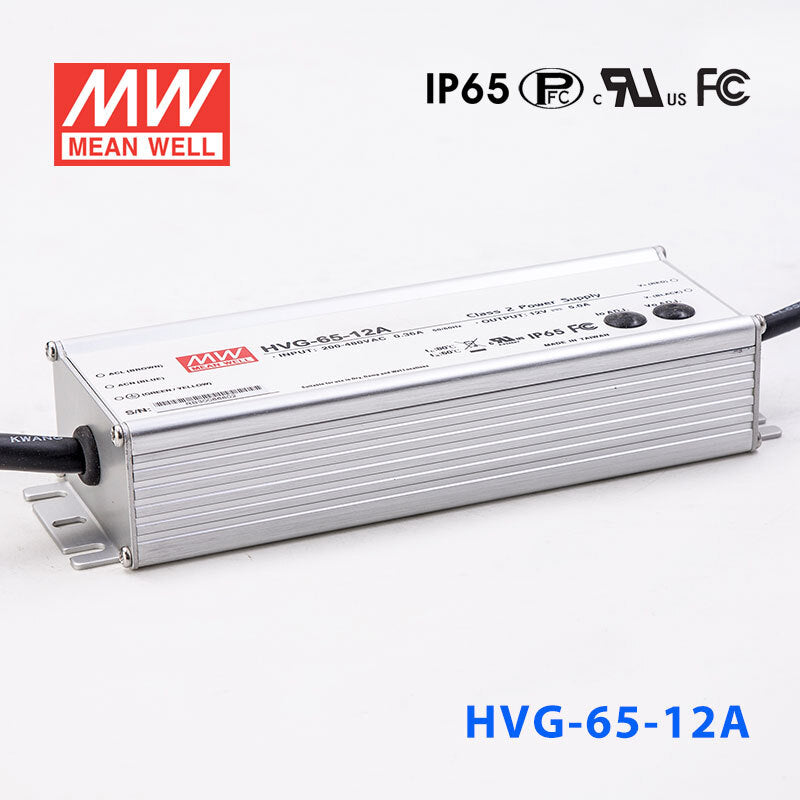

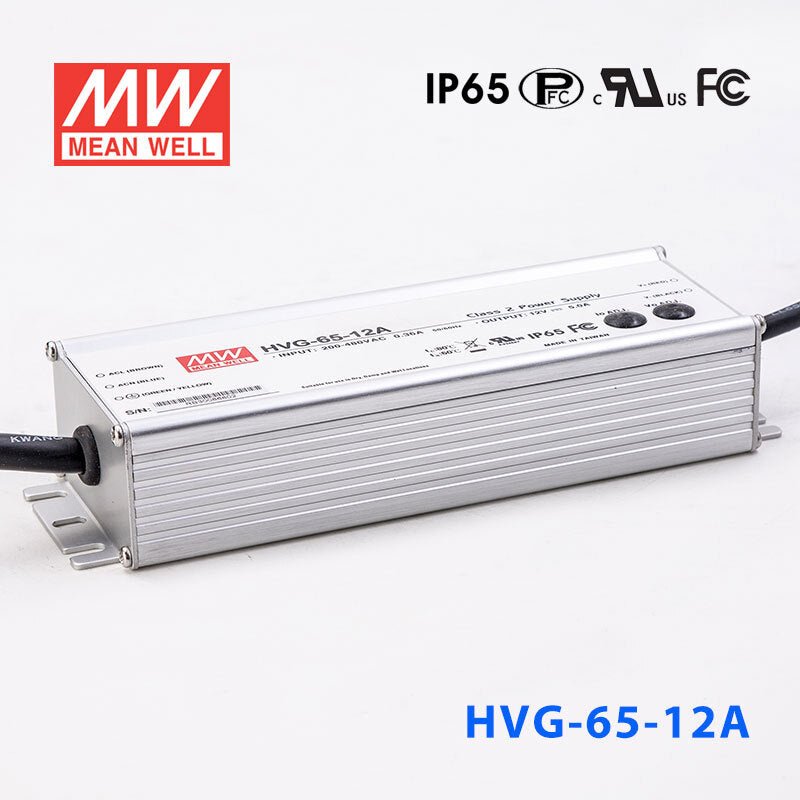

Mean Well HVG-65-12A Power Supply 60W 12V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-12A for 12V LED strip lighting?
Yes, for 12V lighting loads that stay within 60W and 5A. Its 7-12V constant current range means the strip or fixture should be designed to work with this 12V driver output.
Is this driver suitable for small illuminated signs or lightboxes?
It can be used for compact 12V sign or lightbox loads that do not exceed 60W total. The IP65 water-resistant housing also makes it suitable for locations where moisture resistance is useful.
Can the HVG-65-12A power under-canopy or accent lighting outdoors?
Yes, for 12V accent or canopy lighting loads within 60W and 5A. The IP65 rating and -40°C to +80°C operating range make it suitable for outdoor conditions where splash and weather resistance are needed.
How much 12V LED strip can this 60W driver run?
Estimate the maximum length with 60W ÷ strip watts per meter. That gives the power-based limit, but you should check your strip rated power per meter and confirm the strip is designed for this 12V driver output.
What should I know about using the HVG-65-12A in wet locations?
This model is IP65 water-resistant, so it is suited to outdoor or damp areas where rain or splashing is possible. It is not the higher IP67 version, so if the driver will be more directly exposed, that difference matters.
