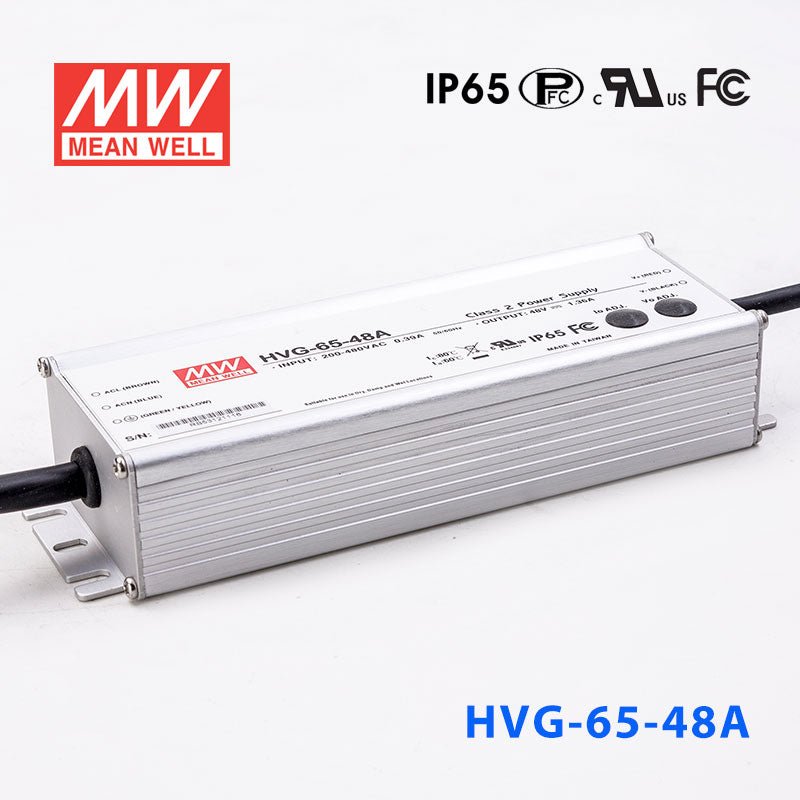

Mean Well HVG-65-48A Power Supply 65W 48V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-48A for 48V LED strip or linear lighting?
Yes, if the lighting product is a 48V constant-current load operating within the 28-48V CC range. The driver provides up to 1.36A and 65.3W.
Is the HVG-65-48A suitable for commercial signage or display lighting?
It can be used for 48V constant-current signage or display fixtures that stay within 65.3W. Its wide 180-528VAC input range is also useful in commercial lighting environments.
Can this driver power 48V architectural LED fixtures for wall or cove lighting?
Yes, for 48V constant-current architectural fixtures that fall inside the 28-48V CC range. Keep the connected load at or below 1.36A and 65.3W.
Would the HVG-65-48A work for covered outdoor lighting projects?
It can, as long as the fixture is a 48V constant-current load and the location only requires an IP65 water-resistant driver. The operating temperature range is -40°C to +80°C.
How much 48V LED strip can this driver support?
Estimate the maximum length by dividing 65.3W by your strip's watts per meter. Check your strip rated power per meter and verify it is compatible with a 48V constant-current driver before sizing by wattage alone.
Can the HVG-65-48A be mounted in damp or outdoor areas?
Its IP65 rating makes it suitable for water-resistant use in protected outdoor or damp environments. It is not the same as an IP67 waterproof enclosure, so the installation conditions should match the IP65 rating.
