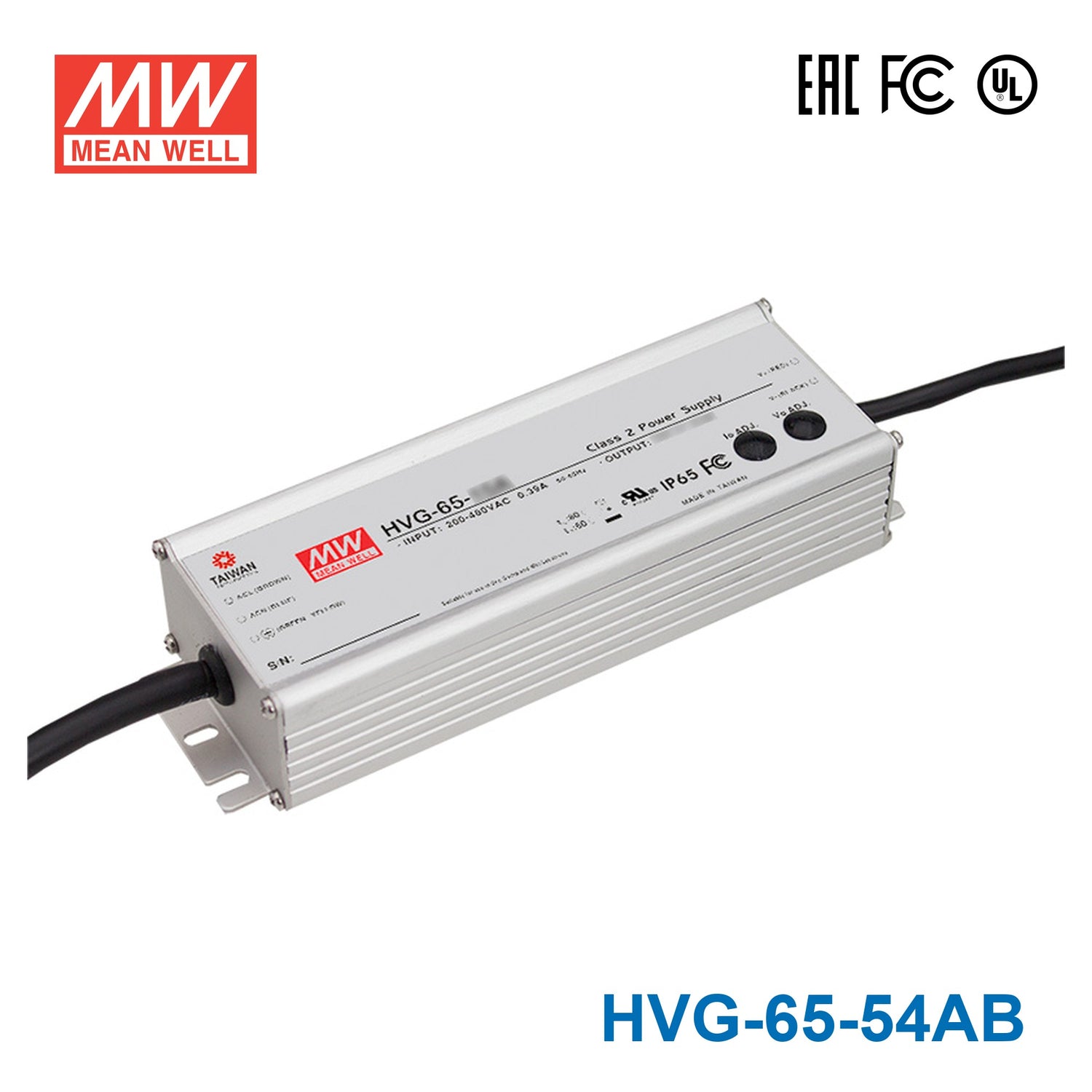

Mean Well HVG-65-54AB Power Supply 65W 54V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-54AB Power Supply 65W 54V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage54 Volt
-
Rated Current1.21 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-54AB for outdoor architectural lighting?
Yes, if the fixture is a constant-current LED load that operates within 32-54V and up to 1.21A. With 65.3W output and an IP65 water-resistant housing, it fits many exterior architectural lighting applications built around 54V-class LED loads.
Is this a good driver for 54V sign letters or light boxes?
It can be used for sign letters or light boxes when the LED system requires constant-current output in the 32-54V range. The driver delivers up to 54V, 1.21A, and 65.3W, so the sign load must stay within those values.
Can the HVG-65-54AB power a long-run 54V lighting circuit?
It is better suited to 54V constant-current lighting assemblies than lower-voltage options because its operating range extends up to 54V. The load still has to stay within 65.3W total and no more than 1.21A output current.
How do I calculate the maximum LED strip length on this 54V driver?
Use the driver's 65.3W maximum output as the limit. Maximum strip length = 65.3W divided by your strip watts per meter, and you should check your strip rated power per meter before final sizing.
How does this compare with other 54V HVG models?
The 54V HVG options mainly scale by output power and current. The listed 54V siblings are 65.3W/1.21A in the HVG-65 range, 95.58W/1.77A in the HVG-100 range, 150.12W/2.78A in the HVG-150 range, 243W/4.5A in the HVG-240 range, 324W/6A in the HVG-320 range, and 480.6W/8.9A in the HVG-480 range.
