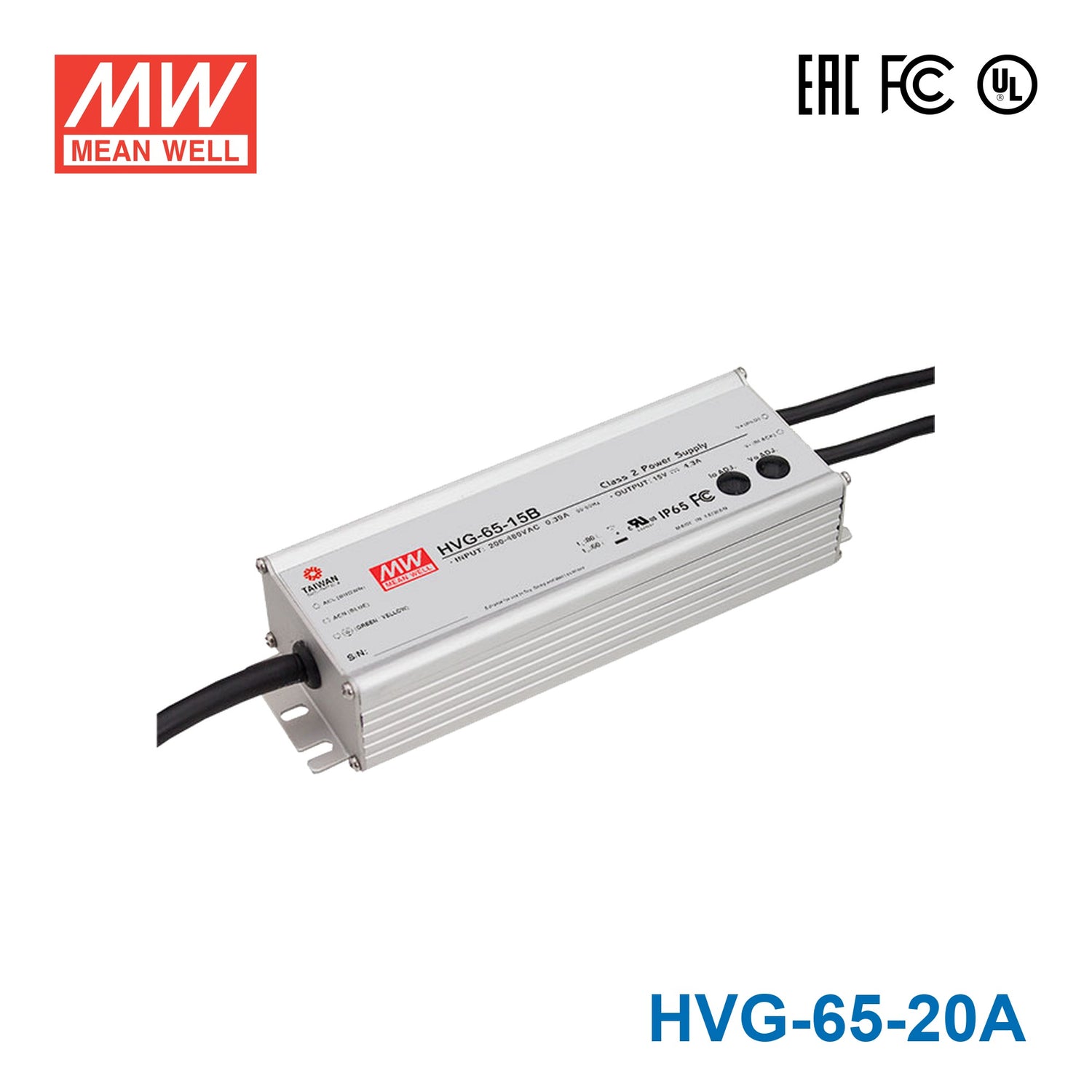

Mean Well HVG-65-20A Power Supply 65W 20V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65 Watt
-
Output Voltage20 Volt
-
Rated Current3.25 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-20A with 20V LED strip lighting?
Yes, if the strip is rated for 20V and the total strip load is no more than 65W. This model provides 20V output at up to 3.25A, so it should be matched only with 20V lighting products. Check your strip rated power per meter before sizing the run.
Is the HVG-65-20A suitable for 20V light box or display lighting?
It can be used for 20V display or light box lighting when the connected load stays within 65W. The important match point is the 20V output, with up to 3.25A available. It is not the right choice for 12V, 15V, or 24V lighting loads.
Can this driver be used in a sheltered outdoor lighting enclosure?
Yes, in sheltered outdoor or damp locations where IP65 water resistance is sufficient. The unit is rated IP65 and operates from -40°C to +80°C, so it handles dust, water jets, and wide ambient temperatures. It is water-resistant rather than fully waterproof.
How much 20V LED strip can the HVG-65-20A support?
Use the output power rating to calculate it: 65W ÷ strip W/m = maximum meters of strip. This driver is limited to 65W total and 3.25A at 20V, so both figures matter when sizing the load. Check your strip rated power per meter before choosing the run length.
Is the HVG-65-20A OK for direct wet exposure?
It is IP65 water-resistant, so it is suitable for dust and water-jet exposure but not for full waterproof or submerged conditions. For harsher wet exposure, an IP67 version in the same family is the stronger enclosure class. This model is rated for -40°C to +80°C ambient operation.
