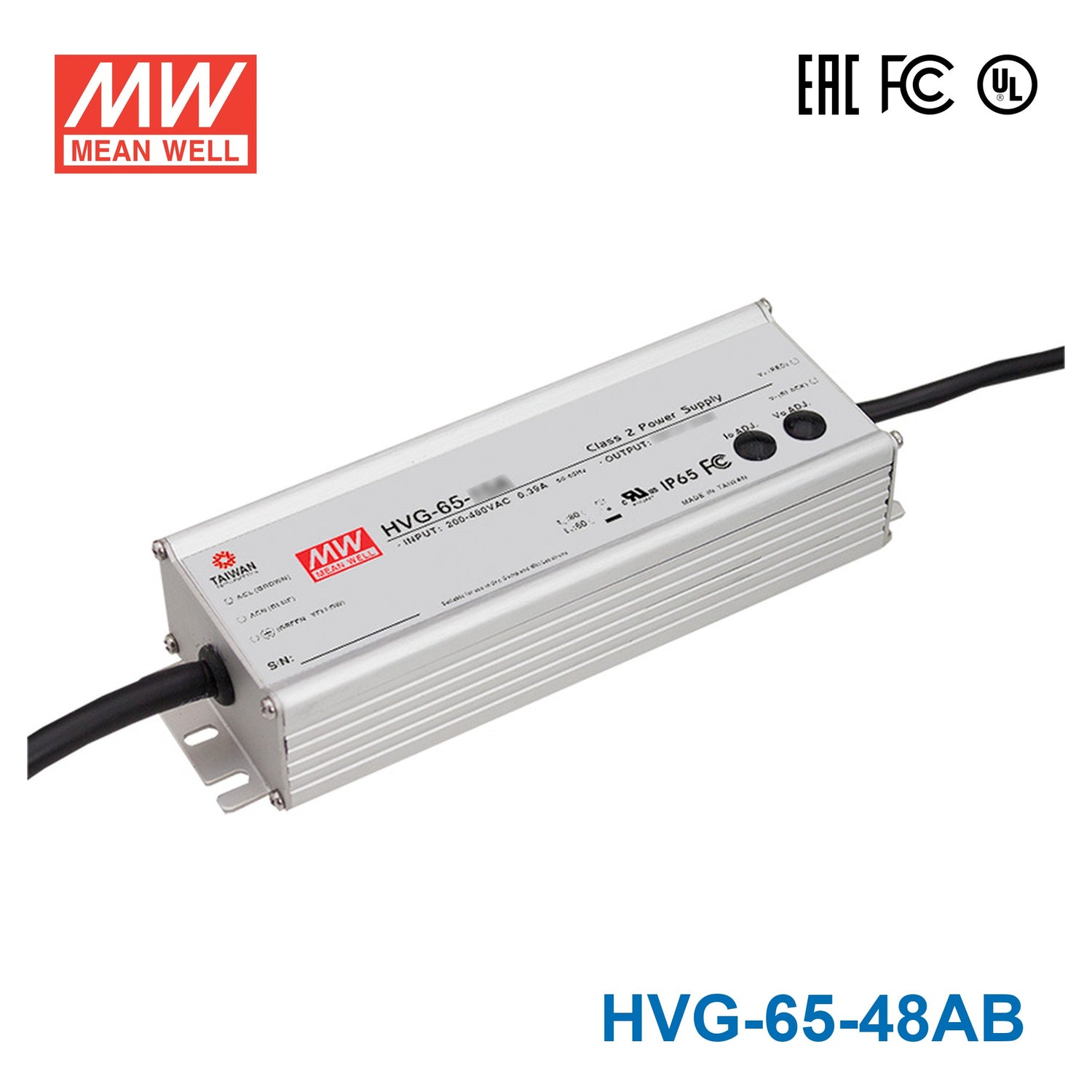

Mean Well HVG-65-48AB Power Supply 65W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-48AB Power Supply 65W 48V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-48AB for outdoor sign lighting?
It can work for outdoor sign lighting when the LED load is a constant-current system that operates within the 28-48V range and draws up to 1.36A. The driver is rated 65.3W and has an IP65 water-resistant housing, so it fits exposed lighting applications where the enclosure may see rain or dust.
Is this driver suitable for 48V architectural linear lighting?
Yes, if the fixture is designed for constant-current operation and its load falls inside the 28-48V constant-current range. This model provides up to 48V at 1.36A with 65.3W total output, which makes it a fit for many linear lighting assemblies built around 48V-class LED loads.
Can the HVG-65-48AB be used for LED strip or tape lighting?
It can only be used where the strip or tape light is compatible with a 48V constant-current driver, not just any 48V product. The output is 65.3W max at 48V and 1.36A, so the lighting load needs to match both the voltage range and the constant-current operating mode.
How much 48V LED strip can this 65.3W driver support?
Use the strip power rating to size it: maximum length = 65.3W divided by your strip watts per meter. For example, the total connected strip load must stay at or below 65.3W, and you should check your strip rated power per meter before calculating the final length.
What is the difference between this model and other 48V HVG series options?
Within the 48V HVG family, the main step-up is output capacity. The listed 48V siblings are 65.3W/1.36A in the HVG-65 range, 96W/2A in the HVG-100 range, 150.24W/3.13A in the HVG-150 range, 240W/5A in the HVG-240 range, 321.6W/6.7A in the HVG-320 range, and 480W/10A in the HVG-480 range.
