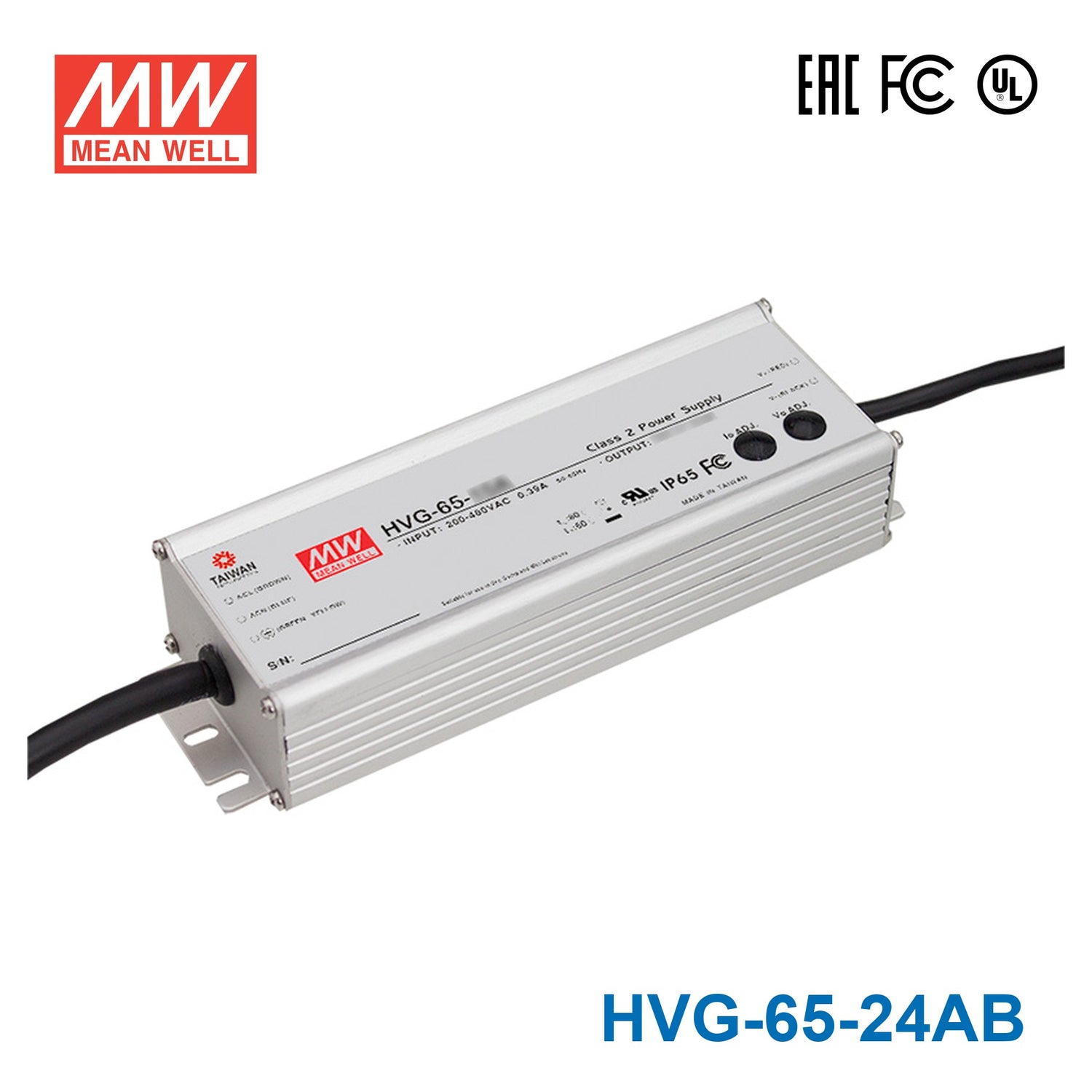

Mean Well HVG-65-24AB Power Supply 65W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-24AB Power Supply 65W 24V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-24AB for 24V LED strip lighting in retail or architectural displays?
Yes, if the 24V lighting load stays within 65W and 2.71A. This model works in constant current mode with a 14-24V range, so the strip or fixture needs to be compatible with that electrical profile. It is suited to moderate-power 24V display and architectural lighting applications.
Is this driver suitable for 24V sign lighting or illuminated lightboxes?
It can be used for 24V sign or lightbox lighting loads that fit within the 65W output limit. The IP65 water-resistant enclosure supports damp or outdoor-protected placements, and the wide 180-528VAC input range is useful on commercial mains systems. Maximum output current is 2.71A.
Can the HVG-65-24AB power decorative outdoor lighting in covered areas?
Yes, for 24V decorative or accent lighting loads that remain within 65W and match the 14-24V constant current range. Because it is IP65 water-resistant, it is a better fit for covered outdoor or splash-prone areas than for more heavily exposed wet locations. The operating temperature range is -40°C to +80°C.
How do I calculate the maximum 24V LED strip length for this driver?
Use 65W divided by your strip's rated power per meter to estimate the maximum length. Keep the total strip load within 65W and within the driver's 2.71A output at 24V. Check your strip rated power per meter before final sizing.
Is the HVG-65-24AB okay for damp or outdoor conditions?
Yes, the IP65 water-resistant rating supports damp environments and outdoor locations where the driver is protected from direct water exposure. Its aluminium casing and -40°C to +80°C operating range also support demanding conditions. For more exposed wet locations, an IP67 version is usually the closer environmental match.
