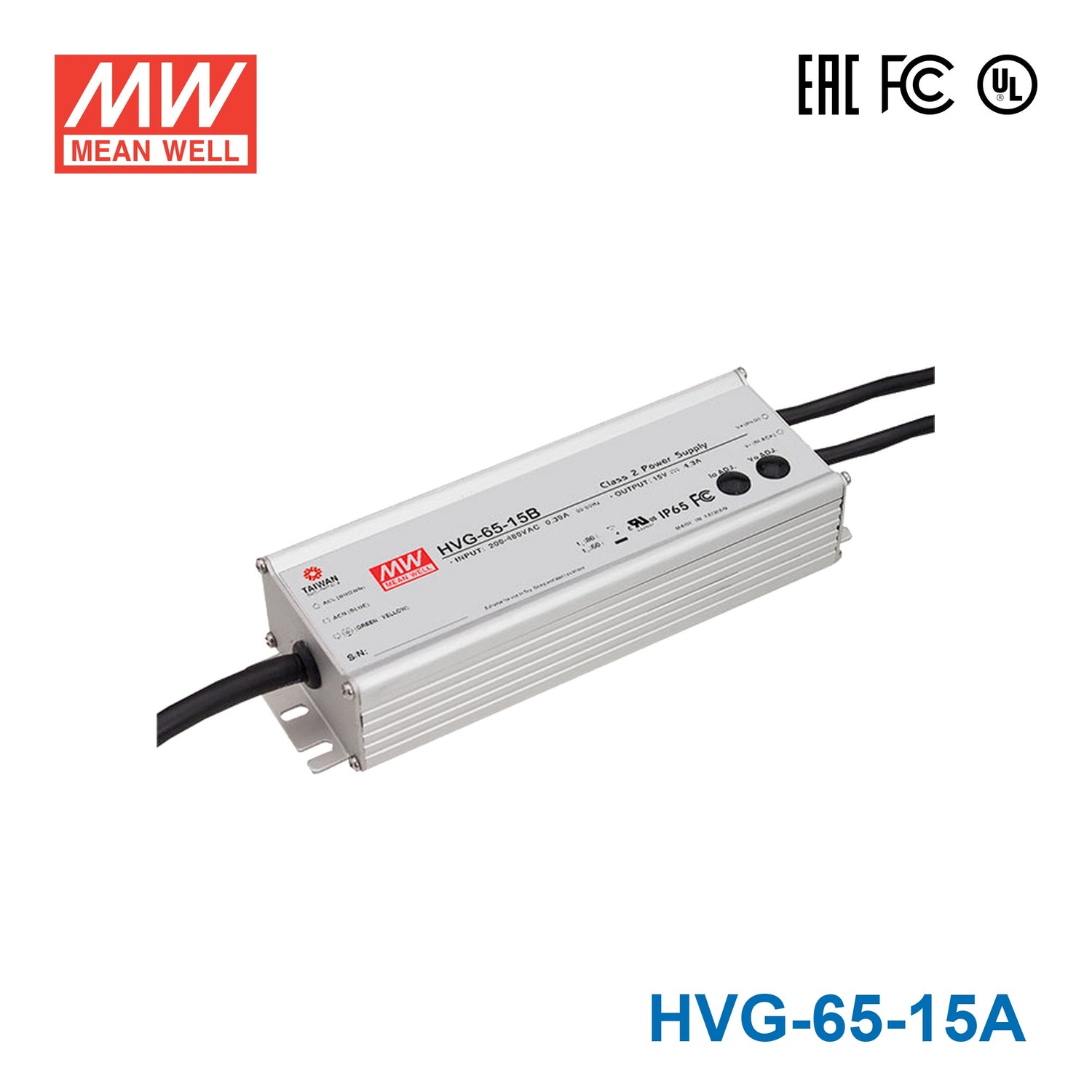

Mean Well HVG-65-15A Power Supply 65W 15V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating64.5 Watt
-
Output Voltage15 Volt
-
Rated Current4.3 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-15A with 15V LED strip lighting?
Yes, for 15V LED strip lighting where the total load stays within 64.5W. This model outputs 15V and up to 4.3A, so the strip must be rated for 15V operation. Check your strip rated power per meter before choosing the total length.
Is the HVG-65-15A a good fit for 15V illuminated sign or display lighting?
It can be used for 15V illuminated display or sign lighting as long as the load does not exceed 64.5W. The 15V output is the key compatibility point, and the driver provides up to 4.3A. Confirm the sign modules or strip are specified for 15V.
Can this model be used for indoor or sheltered architectural lighting?
Yes, it suits 15V architectural or decorative lighting in locations where water resistance is needed but full waterproofing is not required. Its IP65 rating means it resists dust and water jets, and it operates from -40°C to +80°C. It is a better fit for sheltered outdoor or indoor damp areas than for submersed use.
How do I estimate the maximum 15V LED strip length for the HVG-65-15A?
Start with the driver's maximum output of 64.5W and divide by the strip watts per meter. The formula is 64.5W ÷ strip W/m = maximum meters, with the additional current limit of 4.3A at 15V. Check your strip rated power per meter before final sizing.
What are the main output options in the HVG-65 series if I am comparing voltages?
Within the HVG-65 range, the listed fixed-output versions are 12V 60W 5A, 15V 64.5W 4.3A, 20V 65W 3.25A, 24V 65W 2.71A, 30V 65.1W 2.17A, 36V 65.2W 1.81A, 42V 65.1W 1.55A, 48V 65.3W 1.36A, and 54V 65.3W 1.21A. This HVG-65-15A is the 15V, 64.5W, 4.3A option in that group. The A, AB, B, and D suffixes are separate model variants, but the core 15V output spec here is 64.5W and 4.3A.
