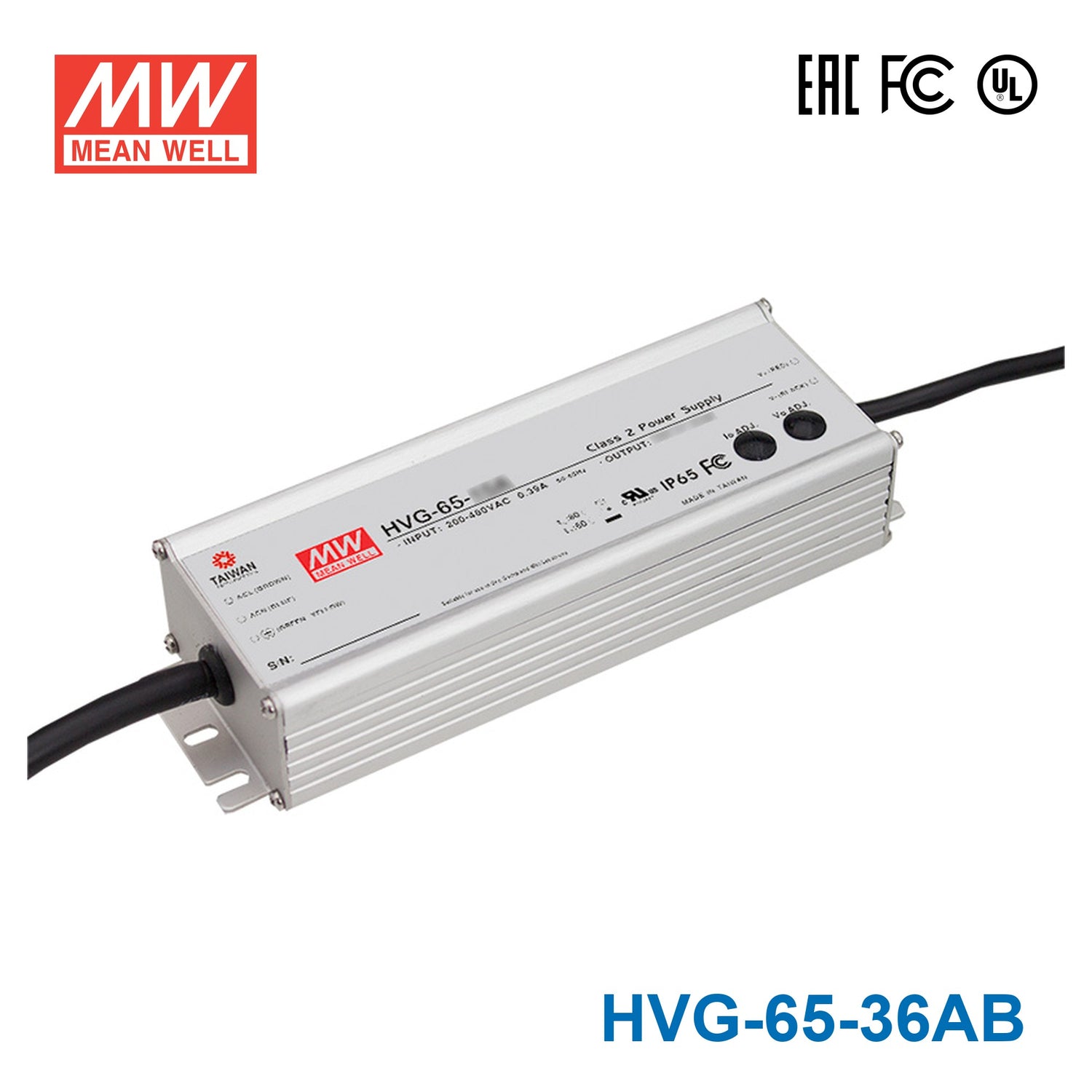

Mean Well HVG-65-36AB Power Supply 65W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-36AB Power Supply 65W 36V - Adjustable and Dimmable
Description
Description
The HVG-65 is a 65W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.81 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-36AB for a 36V constant-current LED panel or sign?
Yes, if the LED panel or sign is designed for constant-current operation between 21V and 36V. This driver supplies 1.81A at 36V with a maximum output power of 65.2W.
Is this driver suitable for 36V accent lighting or display lighting?
It can be used with 36V constant-current accent or display lighting loads that stay within 65.2W. The load also needs to match the 1.81A output current and the driver's constant-current operating mode.
Can the HVG-65-36AB work for semi-exposed outdoor lighting projects?
Its IP65 water-resistant housing makes it suitable for outdoor lighting where the driver may see dust and water spray. It is a better fit for sheltered exterior mounting than for full water immersion conditions.
What LED strip length can I estimate from the HVG-65-36AB's power rating?
Start with the rated output power of 65.2W and divide by the strip's watts per meter. The formula is 65.2W ÷ strip W/m = maximum theoretical meters, but check your strip rated power per meter and confirm the strip is intended for a 36V constant-current driver.
How does the HVG-65-36AB compare with the HVG-65-36A and HVG-65-36B?
All three 36V versions are rated 65.2W and 1.81A. The HVG-65-36A and HVG-65-36AB are IP65, while the HVG-65-36B is IP67; the product names distinguish Adjustable, Adjustable and Dimmable, and Dimmable variants.
