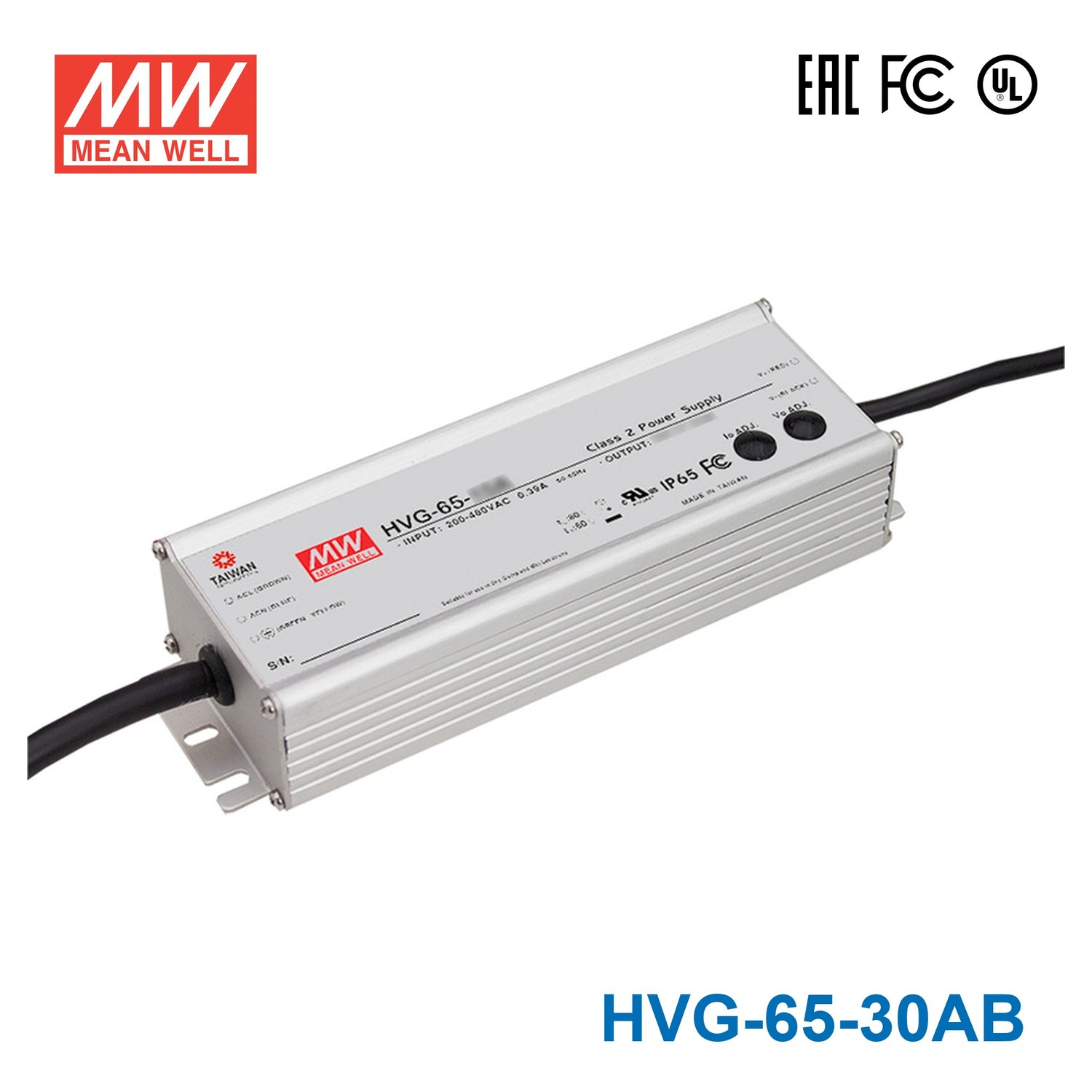

Mean Well HVG-65-30AB Power Supply 65W 30V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-30AB Power Supply 65W 30V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.1 Watt
-
Output Voltage30 Volt
-
Rated Current2.17 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-30AB for a 30V constant-current LED display or illuminated sign?
Yes, if the display or sign is built for constant-current operation within the 18-30V range. This model provides 30V output at 2.17A with a maximum output power of 65.1W.
Is this a good choice for 30V LED cove lighting or accent lighting fixtures?
It can be used with 30V constant-current lighting fixtures that stay within 65.1W and 2.17A. It is not intended for constant-voltage LED products, so the fixture's electrical requirements need to match the driver's constant-current mode.
Can the HVG-65-30AB be used for outdoor architectural lighting?
Its IP65 water-resistant enclosure makes it suitable for outdoor architectural lighting where the driver is exposed to dust and water spray. It should still be used in a protected location rather than anywhere requiring submersion protection.
How do I estimate the maximum LED strip length for the HVG-65-30AB?
Use the driver's 65.1W maximum output and divide it by the strip's rated watts per meter. The formula is 65.1W ÷ strip W/m = maximum theoretical length, but check your strip rated power per meter and make sure the strip is compatible with a 30V constant-current driver.
Is the HVG-65-30AB okay for hot, cold, or dusty locations?
It is rated for operation from -40°C to +80°C, which covers very cold and very hot environments. The IP65 rating also means dust-tight protection with resistance to water spray, so it is appropriate for demanding indoor or sheltered outdoor conditions.
