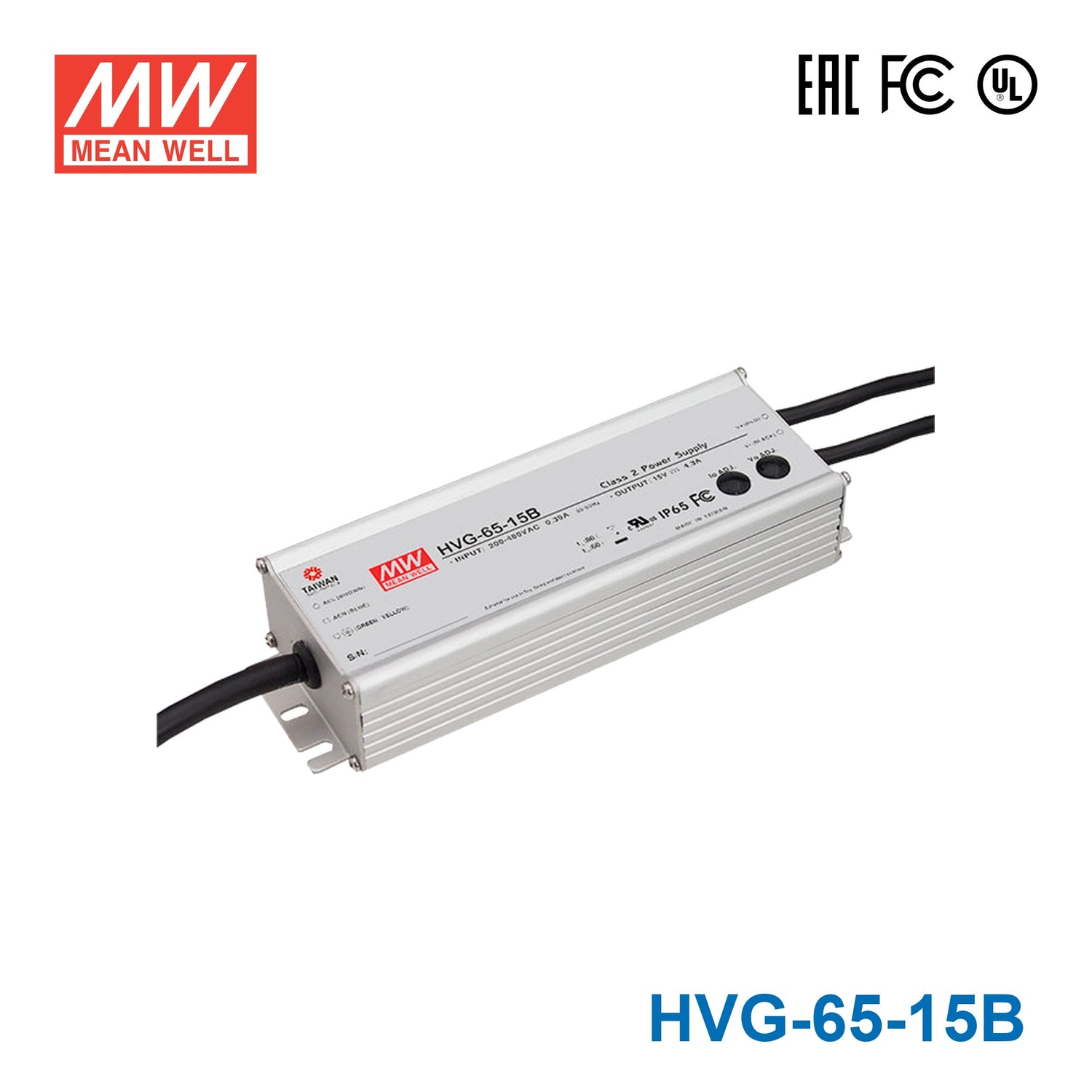

Mean Well HVG-65-15B Power Supply 65W 15V - Dimmable
Description
Description
The HVG-65 is a 65W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating64.5 Watt
-
Output Voltage15 Volt
-
Rated Current4.3 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-15B for 15V LED strip on an outdoor sign?
Yes, if the sign lighting is a 15V load and the total demand stays within 64.5W. This driver provides 15V output up to 4.3A, and its IP67 waterproof rating suits exposed outdoor sign applications. Check the strip or module power rating before sizing the load.
Is the HVG-65-15B suitable for wet-location decorative lighting?
Yes. Its IP67 waterproof enclosure makes it suitable for decorative lighting installations where rain or wet conditions are expected, provided the lighting load is rated for 15V. The driver is also rated for -40°C to +80°C operation.
Can this model be used for 15V display or cabinet lighting where a sealed driver is needed?
It can be used for 15V display, cabinet, or accent lighting when the total load is no more than 64.5W. The sealed IP67 construction is useful where moisture or dust protection matters more than an open indoor-only driver. Confirm the connected lighting is designed for 15V operation.
How do I work out the maximum LED strip length for the HVG-65-15B?
Take the driver's maximum output power, 64.5W, and divide it by the strip watts per meter. The formula is 64.5W ÷ strip W/m = maximum meters, with a maximum output current of 4.3A at 15V. Check your strip rated power per meter before finalizing the length.
What is the difference between this 15V model and the other HVG-65 voltage options?
The HVG-65 family includes 12V 60W 5A, 15V 64.5W 4.3A, 20V 65W 3.25A, 24V 65W 2.71A, 30V 65.1W 2.17A, 36V 65.2W 1.81A, 42V 65.1W 1.55A, 48V 65.3W 1.36A, and 54V 65.3W 1.21A versions. The HVG-65-15B is the 15V, 64.5W, 4.3A option with an IP67 waterproof housing. Output voltage is the main selector across these sibling models.
