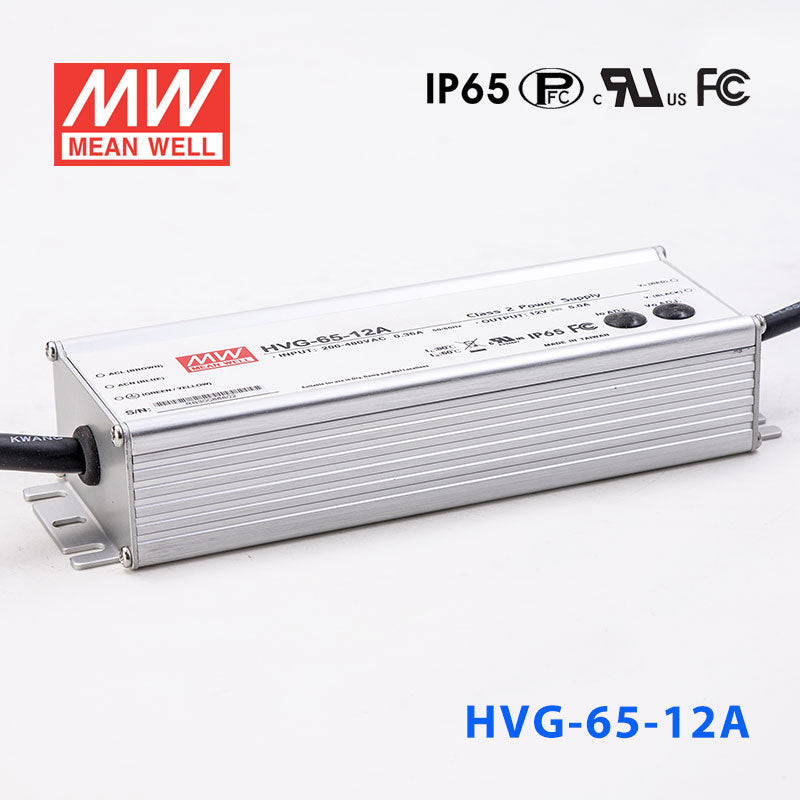

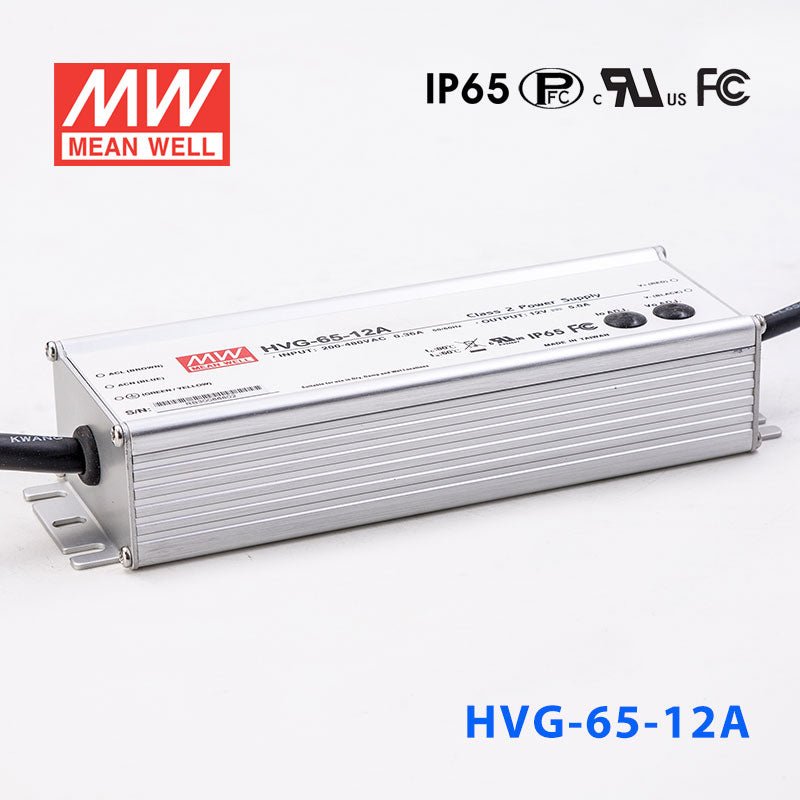

Mean Well HVG-65-12AB Power Supply 60W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-12AB Power Supply 60W 12V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVG-65-12AB be used for short 12V LED strip runs in retail displays?
Yes, if the total 12V load stays within 60W and 5A. That makes it suitable for smaller display lighting sections where the strip or fixture is built for this 12V driver output.
Is this model appropriate for 12V channel letters or small sign lighting?
It can be used for small 12V signage lighting loads up to 60W. The IP65 water-resistant casing is useful where the power supply may be installed in locations with moisture exposure.
Can I use the HVG-65-12AB for damp or semi-exposed lighting projects?
Yes, its IP65 rating supports use in environments where water resistance is needed, and the operating range is -40°C to +80°C. The connected lighting load still needs to remain within 60W and 5A.
How do I size LED strip length with the HVG-65-12AB?
Use this formula: 60W ÷ your strip's watts per meter = maximum length. That is only a power estimate, so check your strip rated power per meter and make sure it is intended for this 12V driver output.
How does the HVG-65-12AB compare with the HVG-65-12A and HVG-65-12B?
All three 12V versions share the same core output rating of 60W, 12V, and 5A. In this model group, the A and AB versions are IP65 water-resistant, while the B version is IP67 waterproof.
