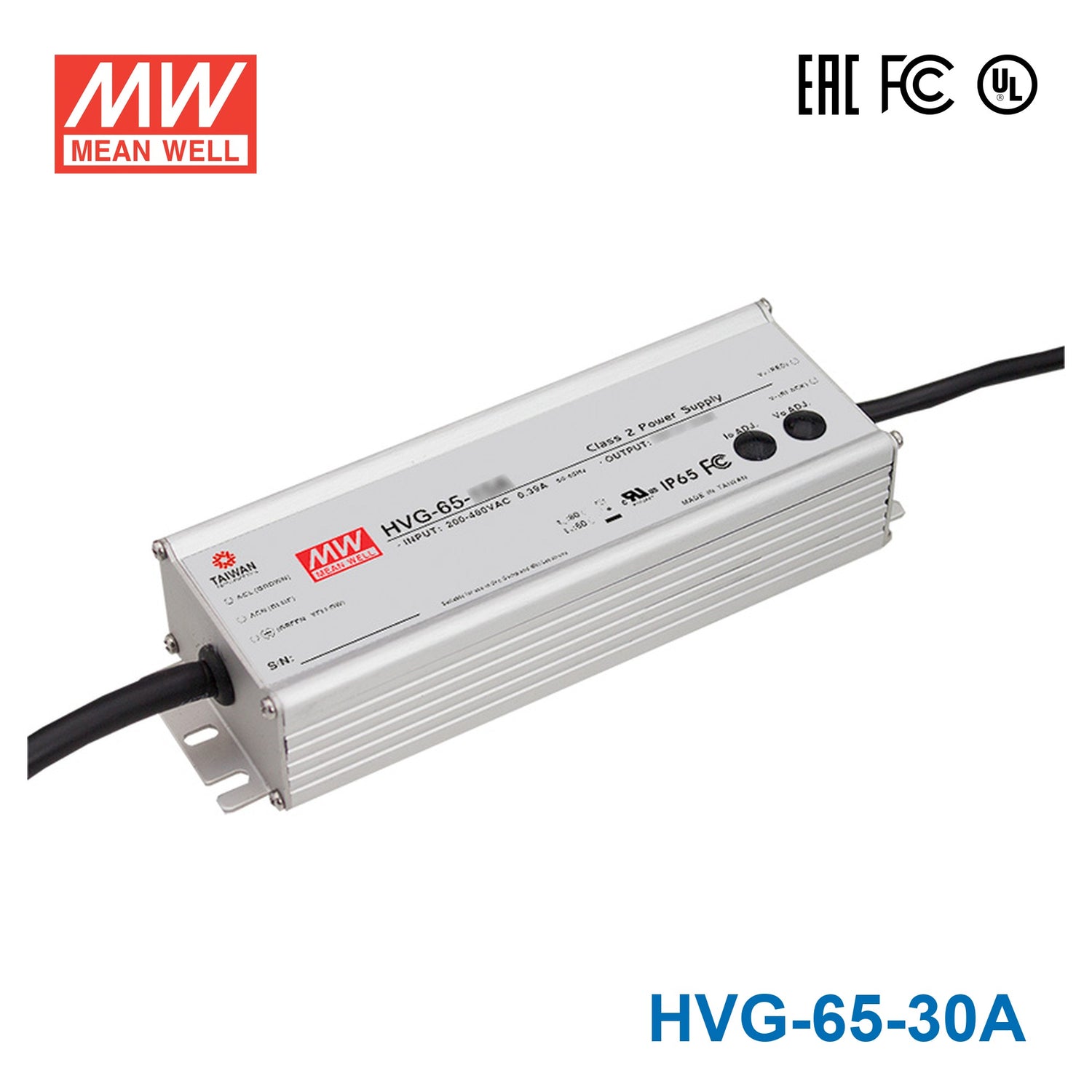

Mean Well HVG-65-30A Power Supply 65W 30V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.1 Watt
-
Output Voltage30 Volt
-
Rated Current2.17 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-30A for a 30V constant-current LED sign or light box?
Yes, if the sign or light box is designed for constant-current operation at 30V. This driver outputs 2.17A and works across an 18-30V constant-current range, so the load has to match that electrical range rather than a constant-voltage LED system.
Is the HVG-65-30A suitable for 30V architectural or commercial linear lighting?
It can be a fit for 30V constant-current linear lighting assemblies that need up to 65.1W. The key match points are the 30V output, 2.17A output current, and constant-current operating mode.
Can this driver power a wet-location 30V LED lighting fixture?
It is rated IP65 water-resistant, so it is intended to resist water spray and dust in demanding environments. It is better suited to protected outdoor or damp-area lighting than to full submersion or locations where the housing sits in standing water.
How much 30V LED strip load can the HVG-65-30A support?
The maximum output is 65.1W, so estimated strip length is 65.1W divided by your strip's rated watts per meter. For example, the calculation is 65.1W ÷ strip W/m = maximum theoretical meters, but check your strip rated power per meter and confirm the strip is actually compatible with a 30V constant-current driver.
What is the difference between the HVG-65-30A, HVG-65-30AB, and HVG-65-30B?
All three 30V versions are rated 65.1W with 2.17A output. The main enclosure difference is that the HVG-65-30A and HVG-65-30AB are IP65, while the HVG-65-30B is IP67; the product names also distinguish Adjustable, Adjustable and Dimmable, and Dimmable versions.
