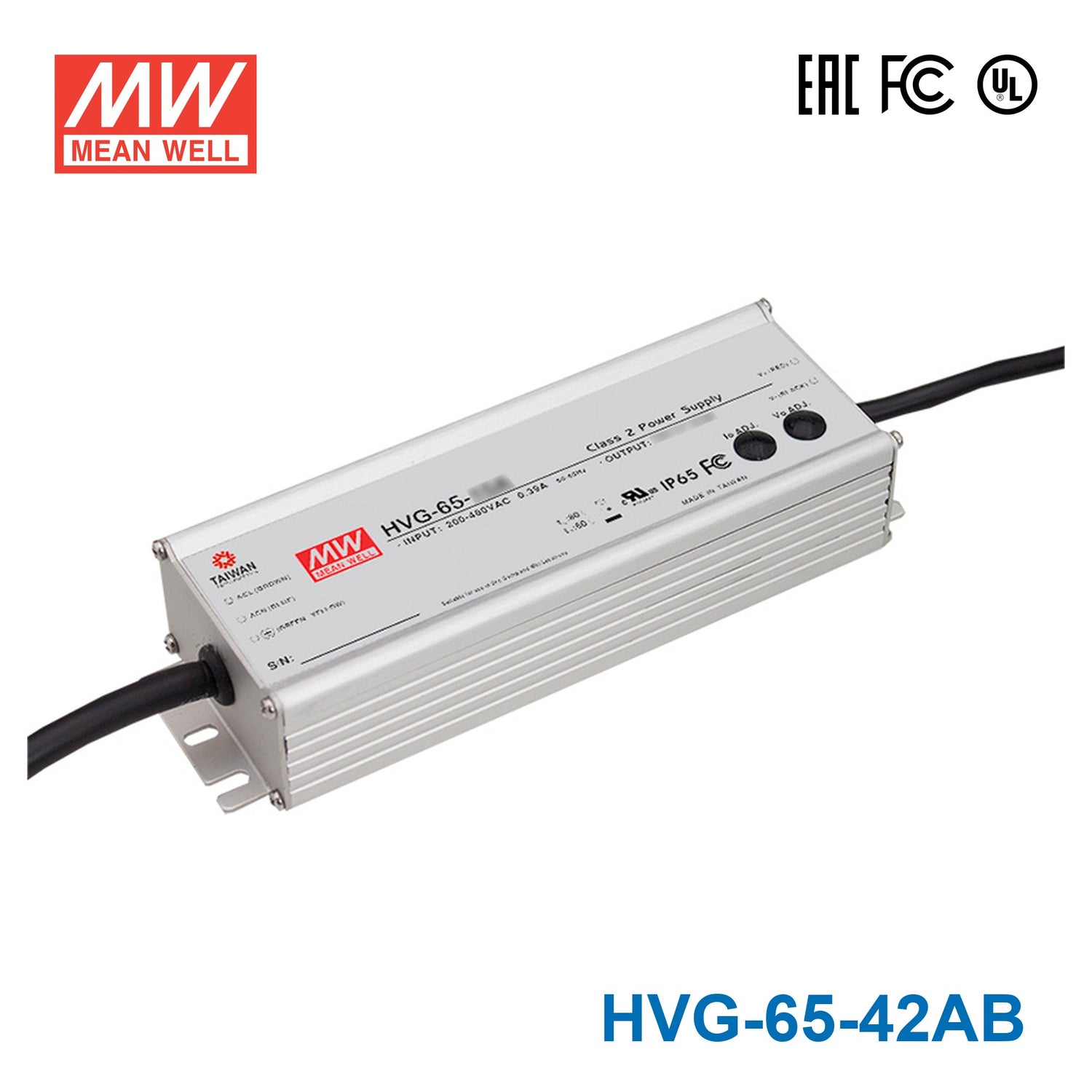

Mean Well HVG-65-42AB Power Supply 65W 42V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-42AB Power Supply 65W 42V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.1 Watt
-
Output Voltage42 Volt
-
Rated Current1.55 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-42AB for dimmable 42V LED display lighting?
Yes, if the display lighting is a 42V constant-current load within the 25-42V CC range. The driver is rated for up to 1.55A and 65.1W, and this version adds adjustable and dimmable capability.
Is the HVG-65-42AB a good option for dimmable sign or cabinet lighting?
It can be, provided the sign lighting uses a 42V constant-current load and stays within 65.1W. Its IP65 enclosure makes it suitable for indoor use and protected outdoor locations where water resistance is needed.
Can this driver be used for architectural linear fixtures that need output adjustment?
Yes, this model is intended for 42V constant-current LED fixtures and includes adjustable output capability. Match the fixture to the 25-42V CC range and keep the load at or below 1.55A and 65.1W.
Would the HVG-65-42AB fit covered outdoor retail or hospitality lighting?
It can fit that type of application when the LED load is a 42V constant-current product and the location only calls for IP65 water resistance. Its -40°C to +80°C operating range also helps in demanding ambient conditions.
How much 42V LED strip can this driver support by wattage?
Estimate the limit by dividing 65.1W by your strip's watts per meter. That gives the watt-based length, but you should also check your strip rated power per meter and verify it is compatible with a 42V constant-current driver.
Is the HVG-65-42AB suitable for fully exposed wet outdoor locations?
It is IP65 water-resistant, so it is better suited to protected outdoor or damp locations than to applications that require a waterproof IP67 enclosure. The driver itself is rated for -40°C to +80°C operation.
