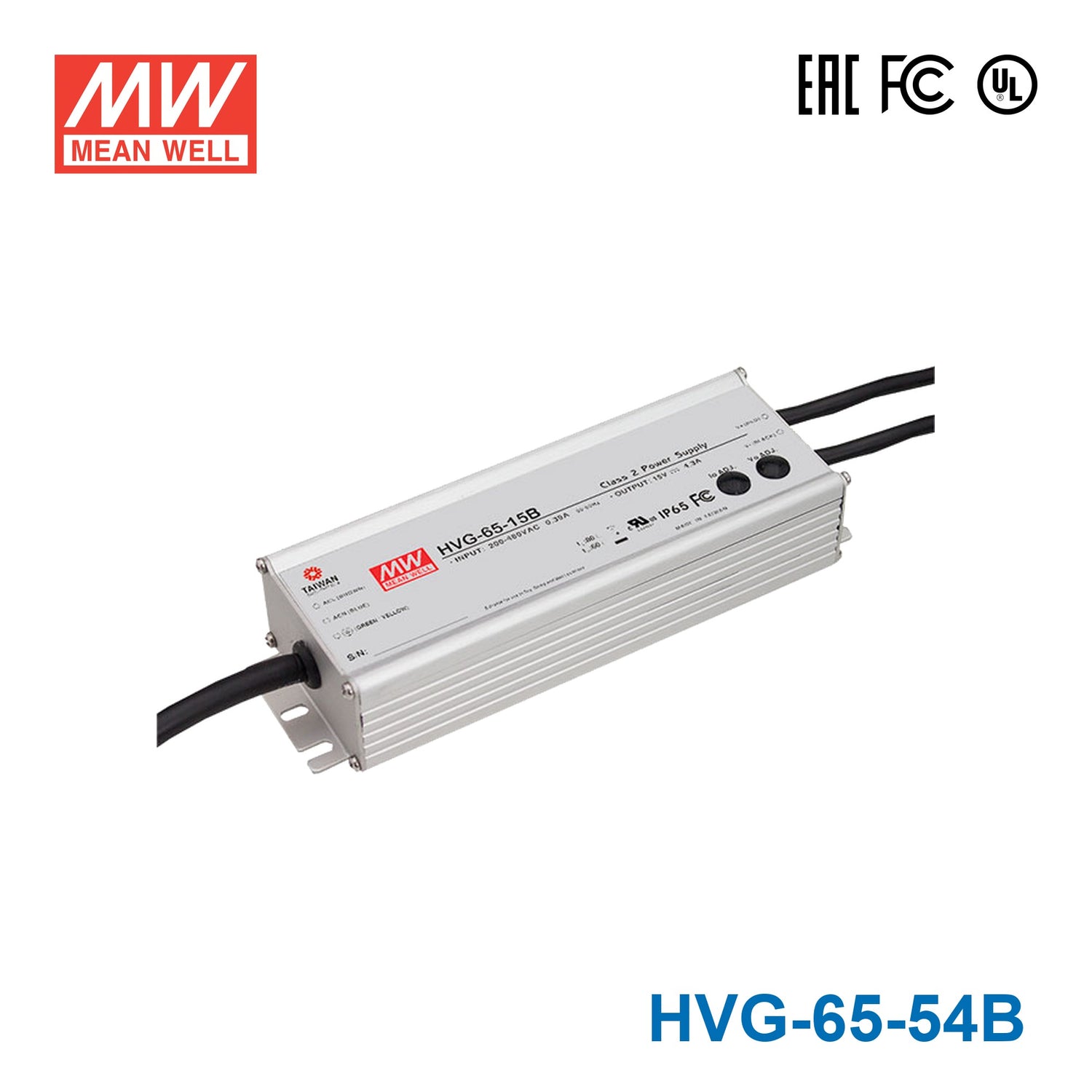

Mean Well HVG-65-54B Power Supply 65W 54V - Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage54 Volt
-
Rated Current1.21 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-54B for outdoor LED lighting in exposed weather?
Yes, when the fixture is a constant-current LED load that works in the 32-54V range and up to 1.21A. This driver is rated 65.3W and IP67 waterproof, so it is intended for tougher outdoor conditions than basic indoor drivers.
Is the HVG-65-54B suitable for wet-location signage?
It can be suitable for wet-location sign lighting if the LEDs require constant-current output between 32V and 54V. The driver's 54V output, 1.21A current, and IP67 waterproof enclosure make it appropriate for many exposed signage applications.
Can this driver be used for 54V linear lighting on exterior buildings?
It is designed for constant-current LED loads and can support exterior linear lighting fixtures that fit the 32-54V range. The output limit is 65.3W at 1.21A, so the fixture must fall inside that electrical window.
What LED strip length can I run from the HVG-65-54B?
Your total strip load cannot exceed 65.3W. To estimate length, divide 65.3W by your strip watts per meter, and check your strip rated power per meter before deciding the final run length.
Is IP67 enough for harsh outdoor conditions?
This model is rated IP67 waterproof, so it is intended for outdoor and wet environments where the driver may face significant exposure to water and dust. It is the stronger environment rating in this group compared with the IP65 water-resistant versions.
