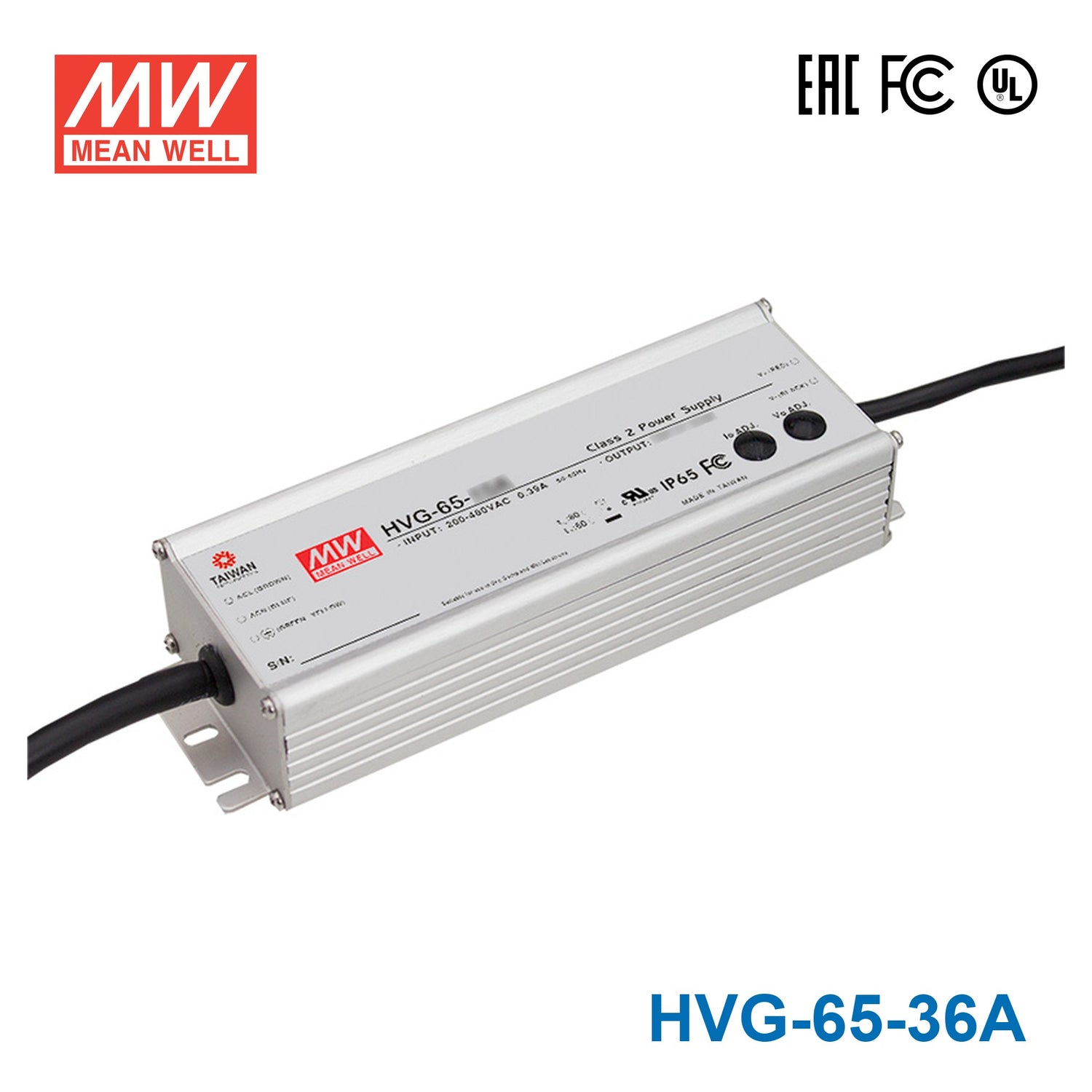

Mean Well HVG-65-36A Power Supply 65W 36V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.81 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-36A for a 36V constant-current LED fixture?
Yes, if the fixture is designed for constant-current operation within the 21-36V range. This driver outputs 36V at 1.81A with a maximum output power of 65.2W.
Is the HVG-65-36A appropriate for 36V linear lighting in commercial spaces?
It can be suitable for commercial linear lighting assemblies that require a 36V constant-current driver and stay within 1.81A and 65.2W. The electrical match is more important than the physical application, since this is not a constant-voltage driver.
Can this model be used for LED signage or channel lighting that runs at 36V?
It can, as long as the signage or channel lighting load is specified for constant-current operation from 21V to 36V. The driver provides up to 65.2W, so the total connected load must remain within that rating.
How do I estimate compatible LED strip length for the HVG-65-36A?
Use the maximum output power of 65.2W and divide by the strip's rated watts per meter. The math is 65.2W ÷ strip W/m = maximum theoretical length, but check your strip rated power per meter and verify that the strip is compatible with a 36V constant-current driver.
Can the HVG-65-36A be used outdoors or in dusty locations?
Yes, in protected outdoor or industrial locations where IP65 water-resistant protection is appropriate. It is also rated for -40°C to +80°C operation, so it covers a wide ambient temperature range.
