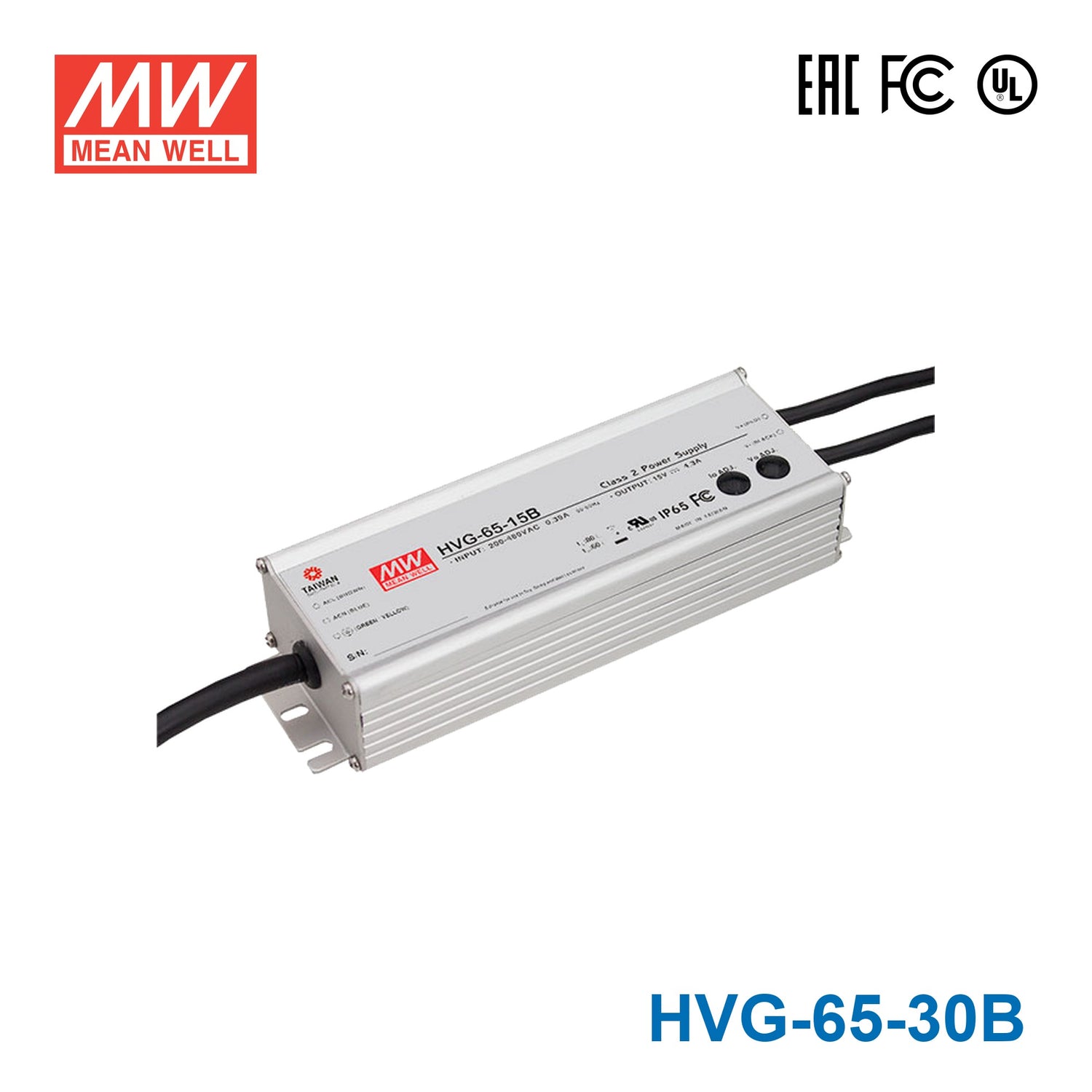

Mean Well HVG-65-30B Power Supply 65W 30V - Dimmable
Description
Description
The HVG-65 is a 65W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.1 Watt
-
Output Voltage30 Volt
-
Rated Current2.17 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-30B for a 30V constant-current outdoor sign?
Yes, if the sign is designed for constant-current operation at 30V and up to 2.17A. This model is rated 65.1W and its IP67 enclosure makes it better suited to harsher outdoor exposure than the IP65 versions.
Is the HVG-65-30B suitable for exterior landscape or facade lighting?
It can be used for 30V constant-current exterior lighting fixtures that need no more than 65.1W. The IP67 rating supports use in wet outdoor environments, provided the lighting load matches the driver's 30V and 2.17A output.
Can this driver power a sealed 30V LED fixture in a wet location?
Yes, this version is IP67 waterproof, which is intended for higher water resistance than IP65 water-resistant models. It is a stronger fit for wet-location fixtures as long as the LED load is a constant-current 30V system within 65.1W.
How much 30V LED strip can the HVG-65-30B support?
Its maximum output is 65.1W, so the strip-length estimate is 65.1W divided by the strip's watts per meter. The calculation is 65.1W ÷ strip W/m = maximum theoretical meters, but check your strip rated power per meter and confirm it is suitable for a 30V constant-current driver.
Is the HVG-65-30B better for weather exposure than the HVG-65-30A or HVG-65-30AB?
For enclosure rating, yes. The HVG-65-30A and HVG-65-30AB are IP65, while the HVG-65-30B is IP67; all three are 30V, 2.17A, and 65.1W.
