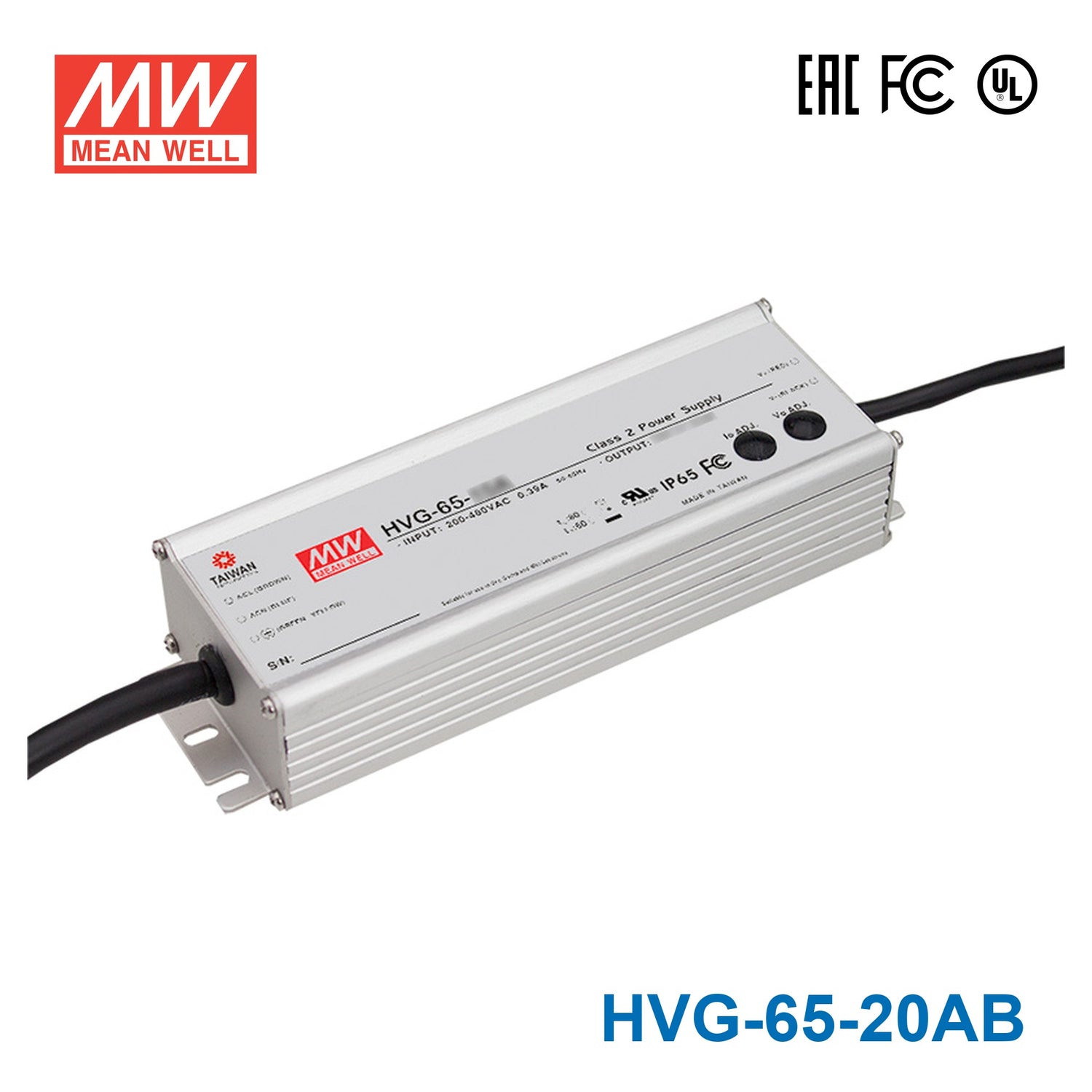

Mean Well HVG-65-20AB Power Supply 65W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-20AB Power Supply 65W 20V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65 Watt
-
Output Voltage20 Volt
-
Rated Current3.25 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-20AB for a 20V LED strip lighting run?
Yes, if the strip system is designed to work at 20V and stays within the driver's 65W and 3.25A output limits. This model operates in constant current mode with a 12-20V CC range, so the strip or fixture needs to match that electrical requirement. It is best suited to shorter or moderate-power 20V lighting runs rather than loads above 65W.
Is this 20V driver suitable for illuminated signage or channel letter lighting?
It can be used for 20V signage or sign-lighting loads that fit within 65W total output. The IP65 water-resistant housing supports outdoor or damp-location use where the driver is exposed to rain or splashing, but the connected load still needs to match 20V operation. Output current is 3.25A maximum.
Can the HVG-65-20AB power compact architectural or accent lighting?
Yes, for 20V accent, linear, or architectural lighting loads that fall inside the 12-20V constant current range and stay under 65W. Its aluminium casing and -40°C to +80°C operating temperature make it suitable for demanding indoor or outdoor environments. The compact body is 189.0 × 61.5 × 36.8 mm.
How much 20V LED strip can this driver support?
Maximum strip length is calculated as 65W divided by your strip's rated power per meter. In other words, total strip load must stay within 65W, and the output current must stay within 3.25A at 20V. Check your strip rated power per meter before sizing the run.
What is the difference between the HVG-65 20V, 24V, 30V, 36V, 42V, 48V, and 54V versions?
Within the HVG-65 range, the main electrical options are 20V 3.25A, 24V 2.71A, 30V 2.17A, 36V 1.81A, 42V 1.55A, 48V 1.36A, and 54V 1.21A, all around the same 65W class. The lower-voltage versions in the same family are 12V 5A and 15V 4.3A. This HVG-65-20AB is the 20V, 3.25A version.
