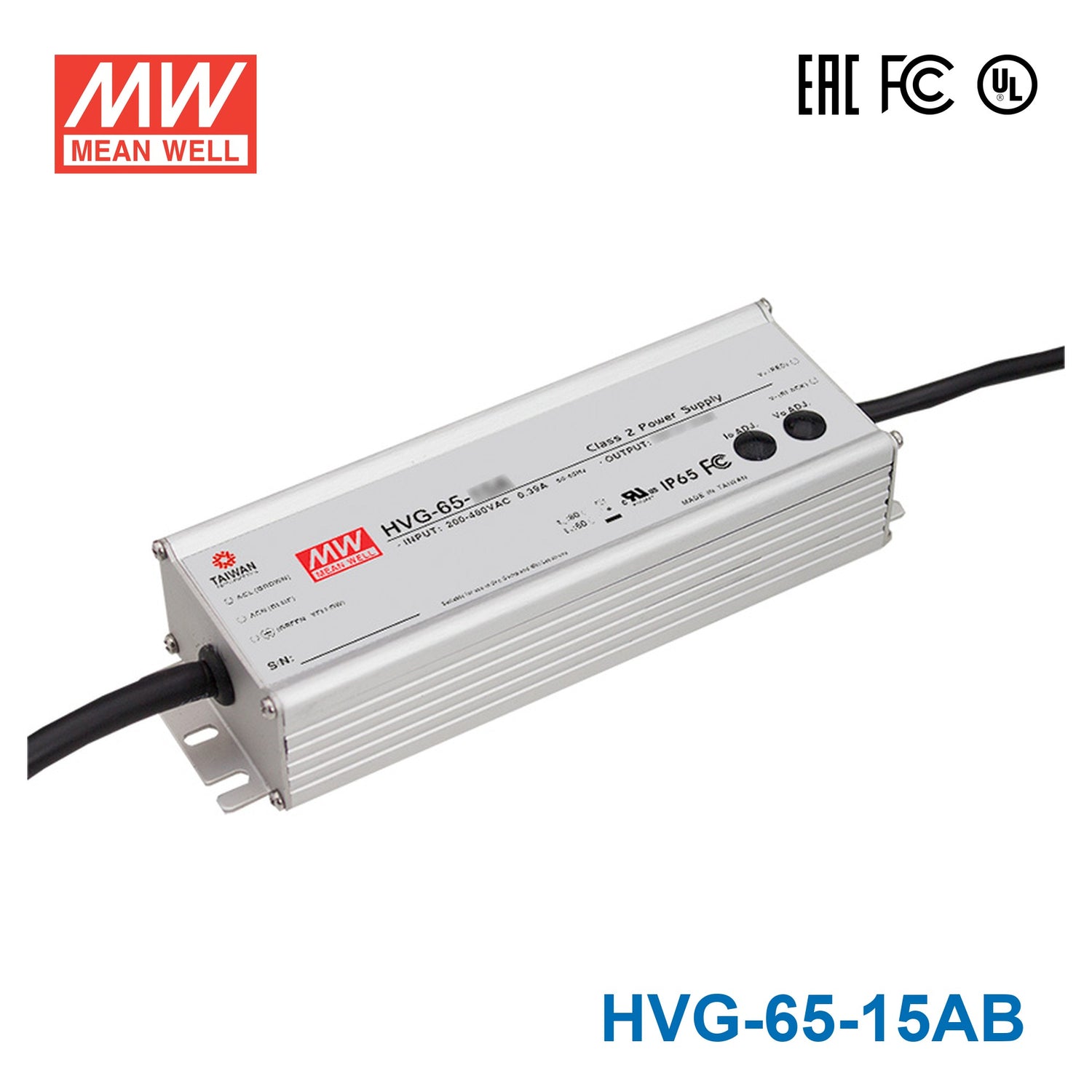

Mean Well HVG-65-15AB Power Supply 65W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-65-15AB Power Supply 65W 15V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating64.5 Watt
-
Output Voltage15 Volt
-
Rated Current4.3 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVG-65-15AB power 15V LED strip for retail shelving or display lighting?
Yes, if the LED strip is rated for 15V and the total strip load is no more than 64.5W. This model provides up to 4.3A at 15V, which suits moderate-power display lighting circuits. Check your strip rated power per meter before calculating the total length.
Is this driver suitable for 15V LED modules used in sign boxes or lighted displays?
It can be used with 15V LED modules or strip-based display lighting as long as the connected load stays within 64.5W. The output is 15V with a 4.3A maximum, so the load must match that voltage. This makes it a fit for 15V display lighting rather than 12V or 24V systems.
Can I use the HVG-65-15AB for decorative lighting in damp locations?
Yes, in damp or weather-exposed locations where IP65 water resistance is appropriate. IP65 means resistance to dust and water jets, and the unit is rated for -40°C to +80°C operation. It is intended for water-resistant use, not continuous immersion.
How much 15V LED strip can this 64.5W driver support?
Use the driver's total output rating and divide by the strip power per meter: 64.5W ÷ strip W/m = maximum meters. The current limit is 4.3A at 15V, so both wattage and current need to stay within spec. Check your strip rated power per meter before sizing the run.
Is the HVG-65-15AB waterproof for outdoor exposure?
It is IP65 water-resistant rather than IP67 waterproof. That means it is suitable for outdoor areas with dust and water spray exposure, but not for submerged or fully sealed-wet applications. The aluminium casing and -40°C to +80°C operating range support use in demanding ambient conditions.
