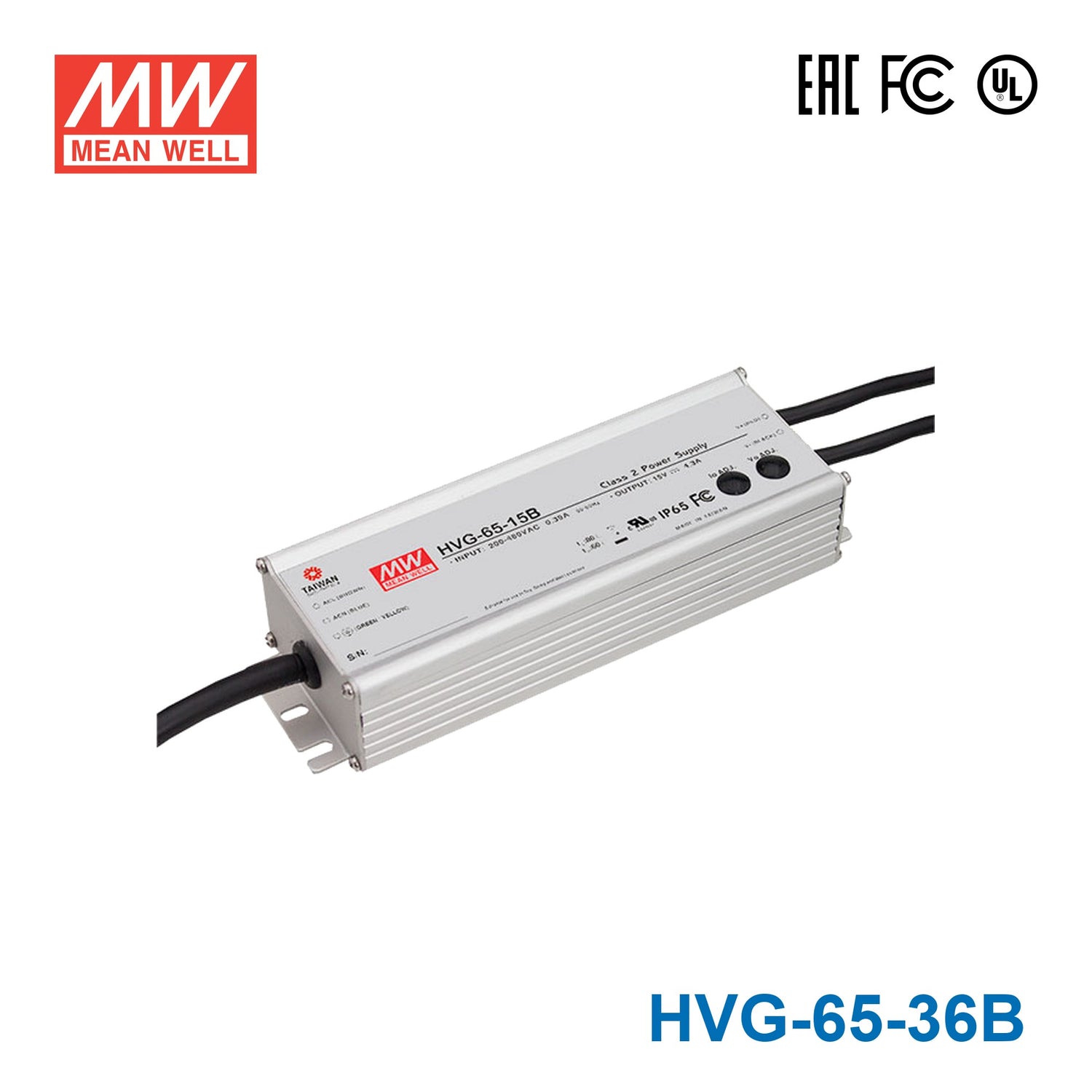

Mean Well HVG-65-36B Power Supply 65W 36V - Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.81 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-36B for 36V LED strip lighting inside a sign cabinet?
Yes, if the lighting load is a 36V constant-current system that operates within the 21-36V CC range. Keep the total load at or below 1.81A and 65.2W, and confirm the strip or module is designed for constant-current operation rather than a constant-voltage power supply.
Is the HVG-65-36B a good fit for outdoor architectural linear lighting?
It can be used for outdoor 36V constant-current linear fixtures because it is rated IP67 and operates from -40°C to +80°C. The fixture load still needs to stay within 36V output, 1.81A, and 65.2W.
Can this driver run 36V LED modules for channel letters or illuminated signage?
Yes, it is suitable for 36V constant-current signage loads that fall inside the 21-36V CC range. For sizing, stay within the 65.2W maximum and 1.81A output current.
How much 36V LED strip can the HVG-65-36B support?
Use the strip's rated power per meter and calculate maximum length as 65.2W divided by watts per meter. That gives the theoretical length limit, but you should also verify the strip is compatible with a 36V constant-current driver and not just matched by wattage.
Can the HVG-65-36B be used in wet or exposed outdoor locations?
Its IP67 rating makes it suitable for outdoor and wet-location use where a waterproof driver is required. The aluminum casing and -40°C to +80°C operating range also support exposed environments, but the connected lighting product needs its own matching environmental rating.
