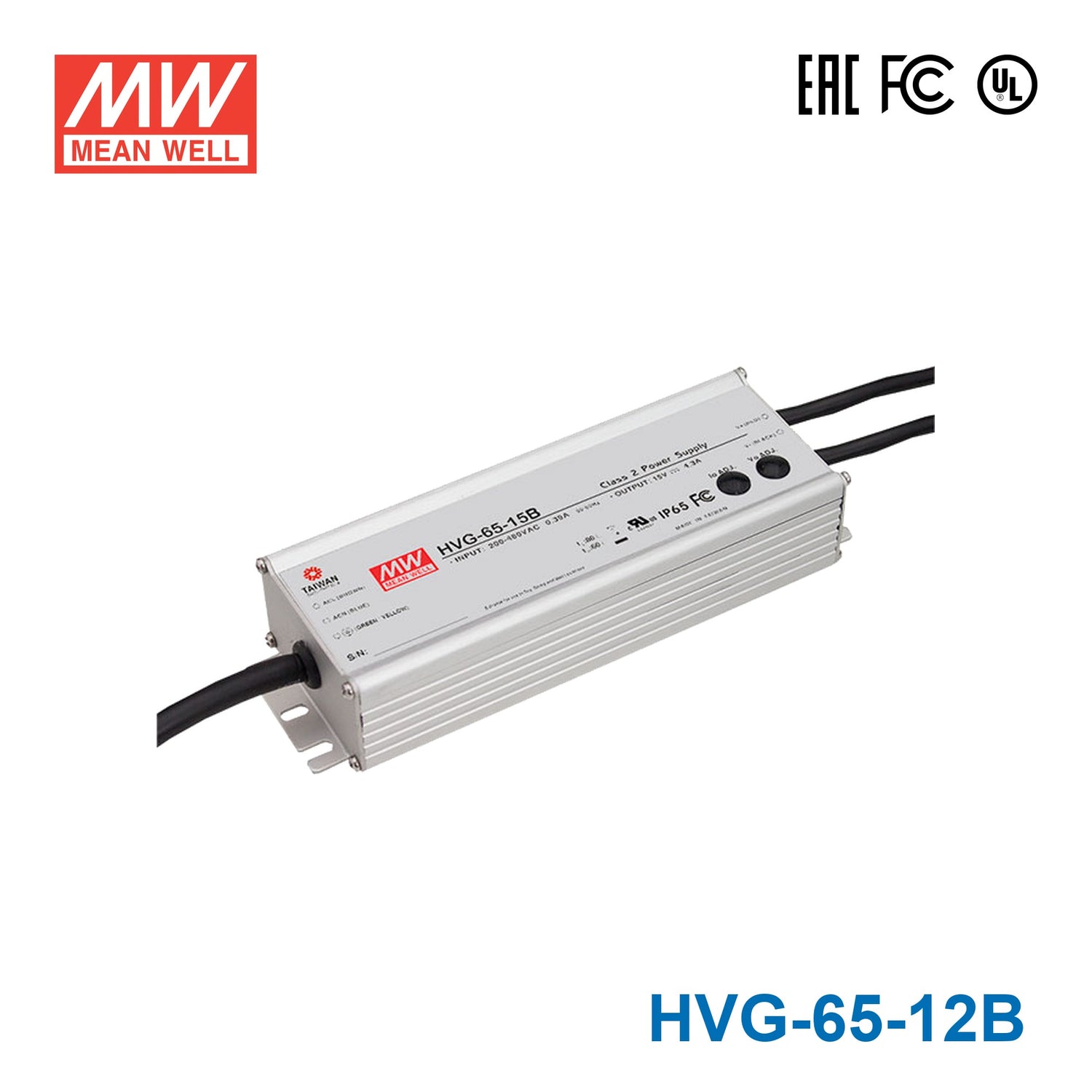

Mean Well HVG-65-12B Power Supply 60W 12V - Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-12B for a 12V LED strip accent lighting run?
Yes, if the strip is a 12V model and the total load stays within 60W. At 12V, this driver provides up to 5A, so it fits shorter or medium-length 12V strip lighting runs. Check your strip rated power per meter and keep the total strip wattage at or below 60W.
Is the HVG-65-12B suitable for 12V LED signage lighting?
It can be used for 12V LED signage or channel-letter style lighting where the total demand does not exceed 60W. The IP67 waterproof rating also makes it suitable for signage exposed to rain or washdown conditions. Confirm the sign lighting is rated for 12V operation before selecting it.
Can this driver power 12V landscape or outdoor decorative lighting?
It is suitable for 12V outdoor decorative or landscape lighting loads up to 60W. The IP67 waterproof enclosure and -40°C to +80°C operating temperature support use in wet and wide-temperature environments. Match the connected lighting to the 12V output and keep total load within 5A.
How much 12V LED strip can the HVG-65-12B run?
Use the strip wattage to calculate the maximum length: 60W total capacity divided by the strip watts per meter. For example, the formula is 60W ÷ strip W/m = maximum meters. This unit is limited to 60W and 5A total, so check your strip rated power per meter before sizing the run.
Is the HVG-65-12B OK for outdoor or wet locations?
Yes. Its IP67 waterproof rating means it is built for wet and outdoor environments, and the aluminium casing supports durability in demanding conditions. It is also rated for operation from -40°C to +80°C.
