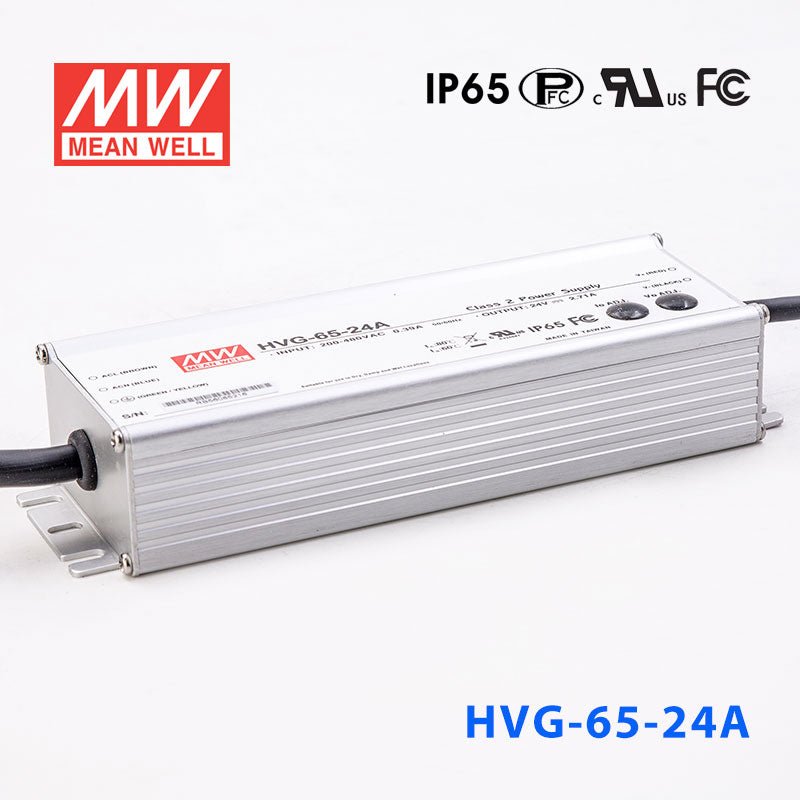

Mean Well HVG-65-24A Power Supply 65W 24V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-24A for 24V LED strip lighting in displays or shelving?
Yes, for 24V strip-based display or shelf lighting that stays within 65W total output. This driver delivers up to 2.71A and operates in constant current mode across a 14-24V range, so the strip system needs to match that requirement. It is a practical fit for lower-power 24V linear lighting runs.
Is this 24V driver suitable for cove or accent lighting?
Yes, for 24V cove, accent, or linear lighting loads that remain within 65W and 2.71A. The 14-24V CC range supports 24V-class lighting applications, and the aluminium casing is built for demanding conditions. It can operate from -40°C to +80°C.
Can the HVG-65-24A be used for indoor or protected outdoor signage lighting?
It can be used for 24V signage lighting where the load is compatible with the driver's output and stays under 65W. The IP65 water-resistant enclosure makes it suitable for damp areas or protected outdoor locations rather than more exposed wet environments. Output voltage is 24V with 2.71A maximum current.
How much 24V LED strip can this power supply handle?
Maximum strip length is 65W divided by the strip's rated power per meter. The full strip load must stay within 65W total and within the driver's 2.71A output at 24V. Check your strip rated power per meter before choosing the final run length.
How does the HVG-65-24A compare with other HVG-65 output options?
The HVG-65 family includes 12V 5A, 15V 4.3A, 20V 3.25A, 24V 2.71A, 30V 2.17A, 36V 1.81A, 42V 1.55A, 48V 1.36A, and 54V 1.21A versions in the same approximate 65W class. This model is the 24V, 2.71A option. Choosing between them depends on the output voltage and current your load requires.
