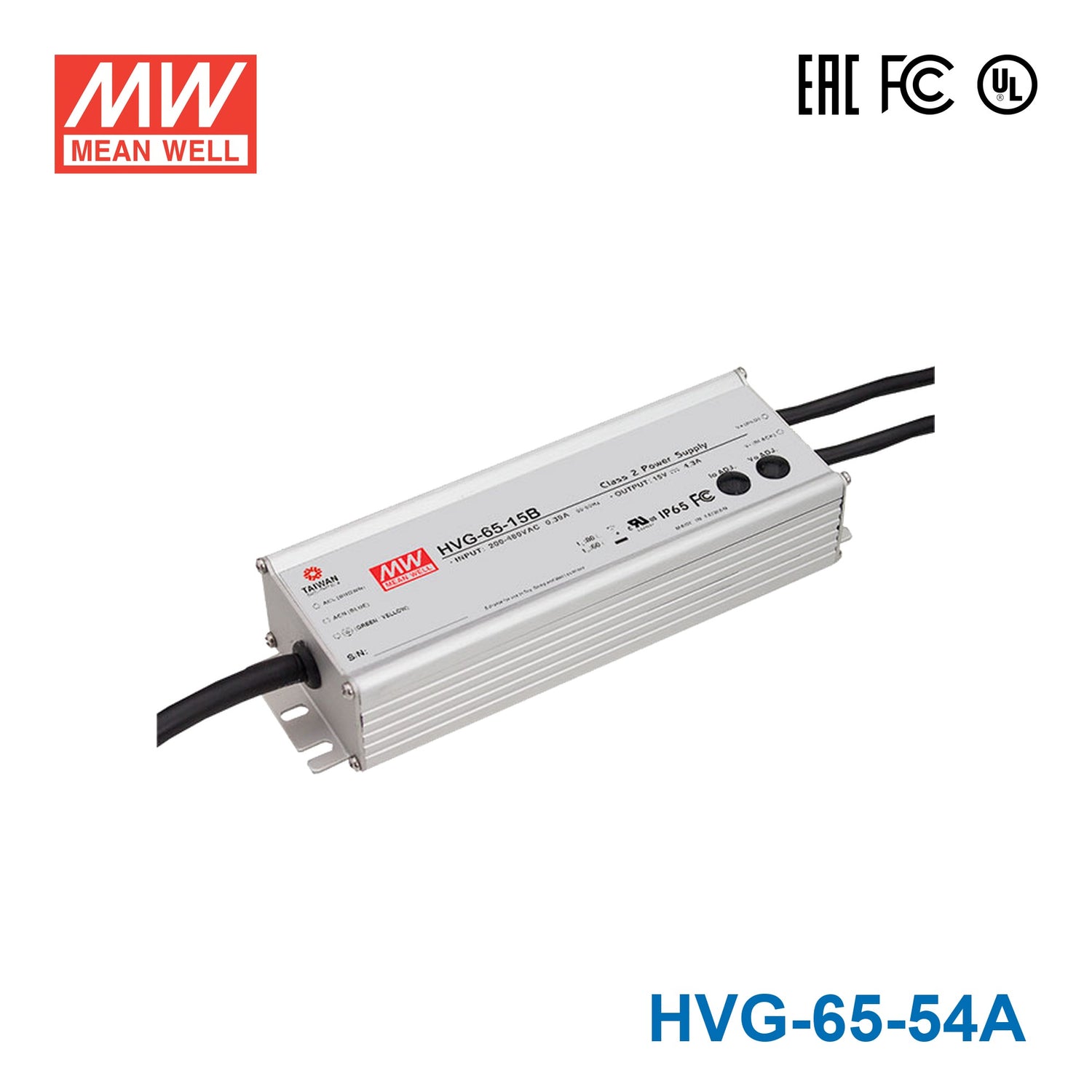

Mean Well HVG-65-54A Power Supply 65W 54V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage54 Volt
-
Rated Current1.21 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-65-54A for 54V LED signage or display lighting?
Yes, if the lighting load is a constant-current design that operates within the 32-54V range and draws up to 1.21A. This driver provides 65.3W max output at 54V and is intended for LED applications rather than general-purpose power use.
Is this driver suitable for high-voltage linear LED fixtures?
It can suit linear fixtures that need a constant-current driver across 32-54V. The output is 54V, 1.21A, and 65.3W, so the fixture's electrical requirements need to stay within those limits.
Can the HVG-65-54A be used for perimeter or cove lighting with LED strips?
Only if the product is a 54V constant-current LED strip or linear light that matches the 32-54V range and 1.21A output. The driver's total available power is 65.3W, so both operating mode and total load have to align.
How much 54V LED strip can this driver handle?
The maximum connected strip load is 65.3W total. To estimate length, divide 65.3W by your strip watts per meter, and check your strip rated power per meter before sizing the run.
Is the HVG-65-54A OK for outdoor or damp locations?
This model has an IP65 water-resistant rating, so it is suited to outdoor or dusty environments where the driver may see splashing or weather exposure. It is not the same environment class as an IP67 waterproof unit, so the installation conditions still need to match an IP65 product.
