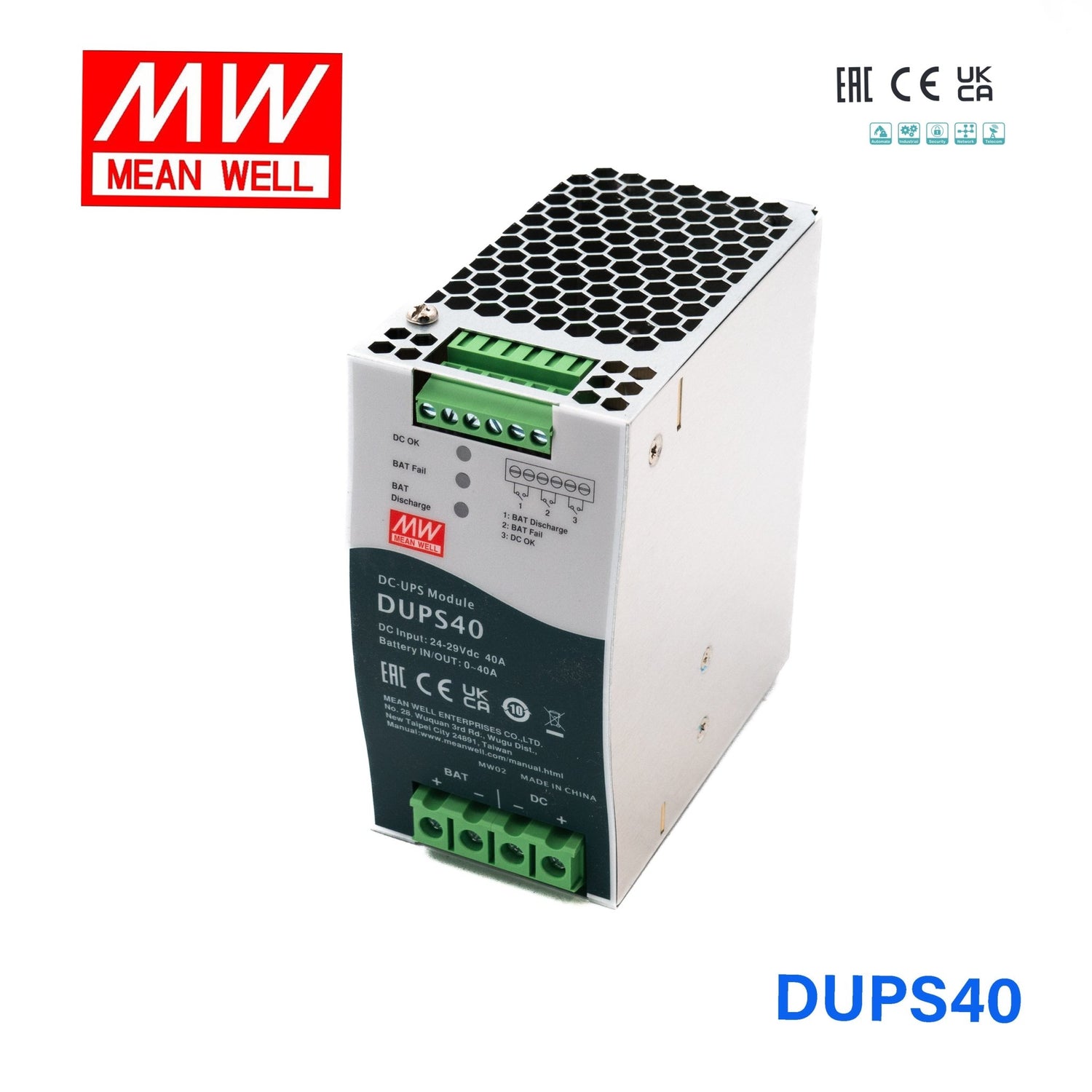

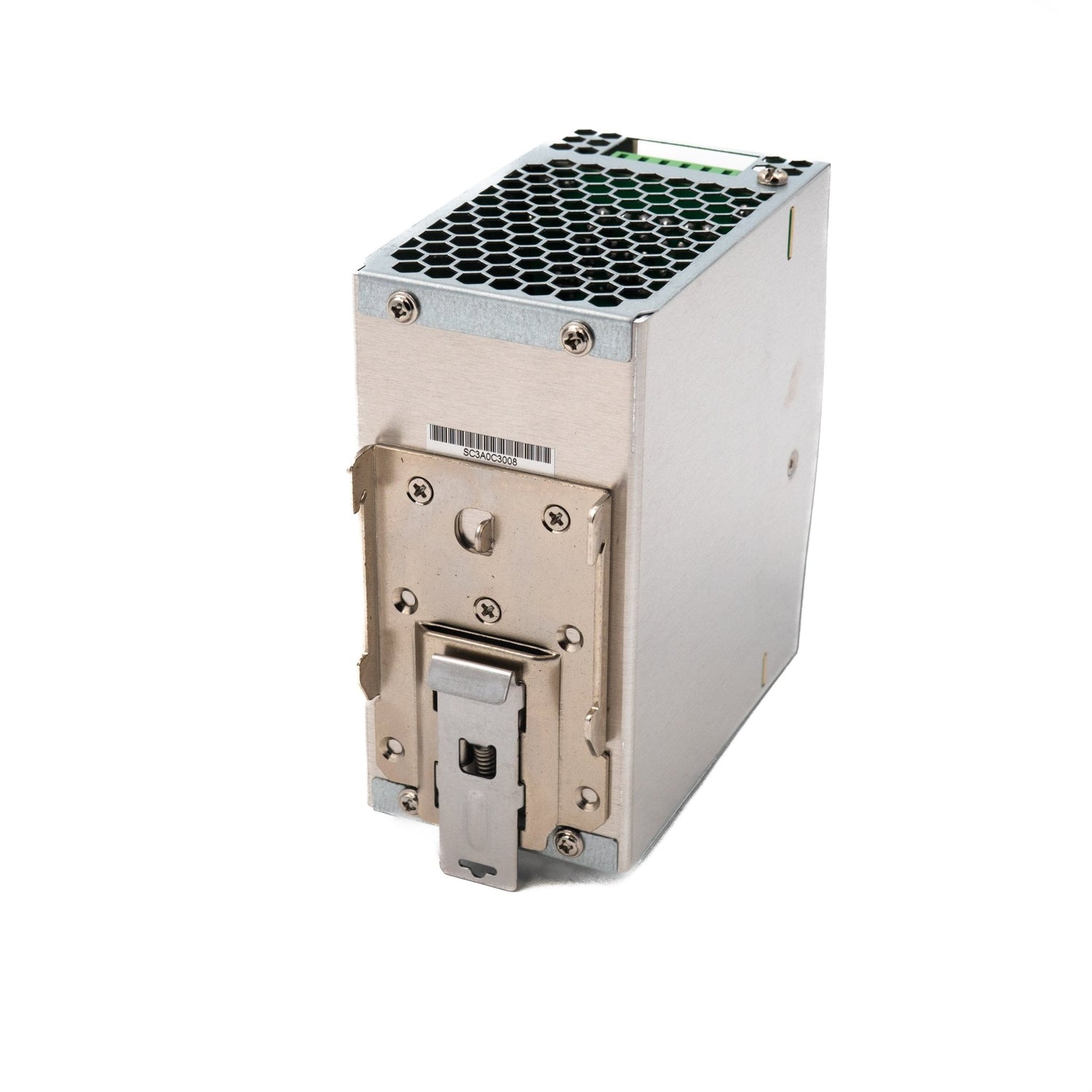

Mean Well DUPS40 DIN Series Uninterruptible DC-UPS Module 40A
uninterruptible DC-UPS controller, slim size, 40mm width, suitable for 24V system
$41.19 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well DUPS40 DIN Series Uninterruptible DC-UPS Module 40A
$41.19 USD
Unit price /
Unavailable
Description
Description
The DUPS40 is a 40A DIN rail type DC-UPS module, and it is paired with a power supply and an external battery to achieve the backup function. When the AC mains fails or is interrupted, the load will be immediately connected to the battery pack to avoid interruption and to ensure the continuous operation of the entire system (the operating time depends on the capacity of the battery pack).The main features of DUPS40 include: fast installation, suitability for 24V battery packs and various capacities of 4AH~135AH, 2A battery charging current, low voltage disconnect for battery protection and more. The product is suitable for use in data centers, security systems, emergency lighting, wireless communication UPS, central monitoring systems, etc.
Specifications
Specifications
-
BrandMean Well
-
SeriesDC-UPS Series
-
Output Voltage21 Volt
-
Rated Current40 Ampere
-
Input Voltage24V~29V
-
No of Output1
-
Standards MetCE,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height2.48 in
-
Weight0.93 lb
