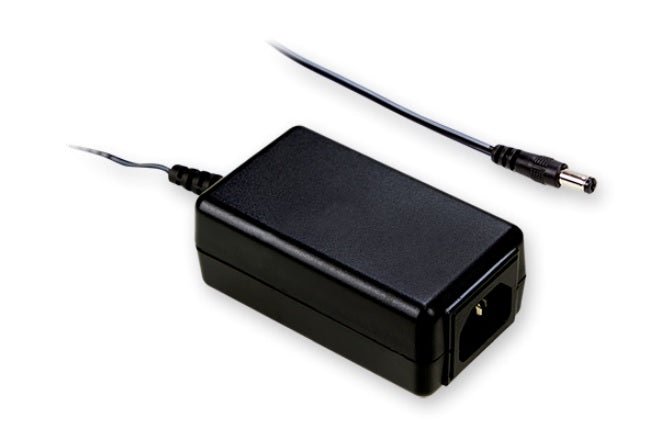

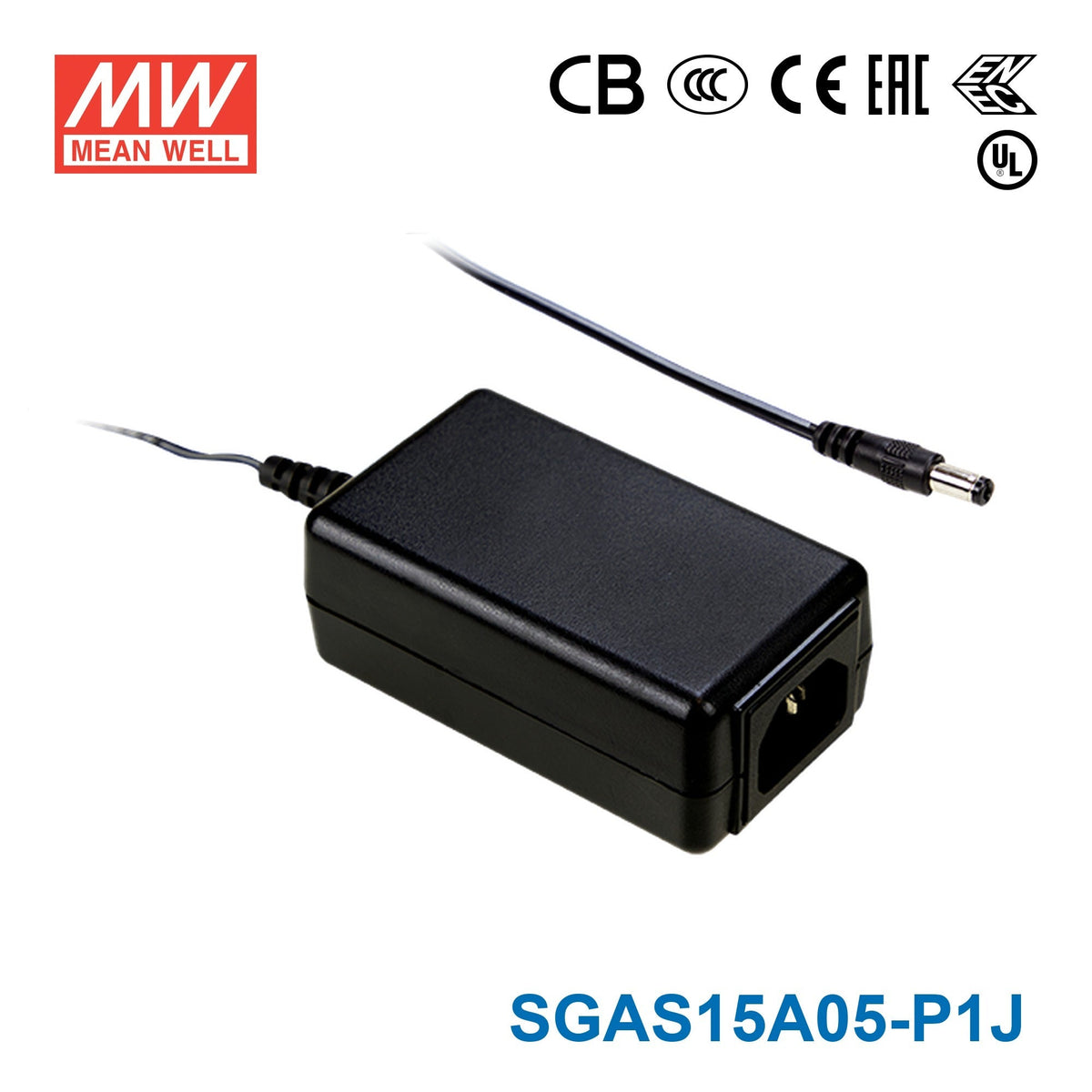

Mean Well SGAS15A05-P1J Power Supply 15W 5V
The SGAS15A05 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.37 in
-
Width2 in
-
Height1.33 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15A05-P1J for a 5V single-board computer or embedded controller?
This model is designed for 5V output and can supply up to 2.4A with a 15W power rating. It is a practical fit for 5V embedded controllers, compact single-board systems, and similar low-power electronics that stay within those limits.
Is this power supply suitable for 5V industrial sensors or small automation interfaces?
It can fit 5V industrial or automation devices that require no more than 2.4A and 15W. The 90-264VAC input also supports use in facilities with a wide AC input range.
Can this 5V power supply run a USB-powered device in a fixed equipment enclosure?
It matches 5V equipment and provides up to 2.4A, so it can support fixed 5V electronics that fall within its 15W capacity. The small 85.7 x 50.9 x 33.8 mm size can also help where enclosure space is limited.
How do I know if this 5V model is the right size for my load?
Your device must match the 5V output and stay at or below 2.4A and 15W. If the required current or total wattage is higher than those ratings, this model is undersized for that load.
Is the SGAS15A05-P1J suitable for indoor or outdoor environments?
The provided specs show an operating temperature range of -20°C to +70°C. No IP rating is listed here, so indoor or outdoor suitability should be confirmed from the product's enclosure rating in the full datasheet.
