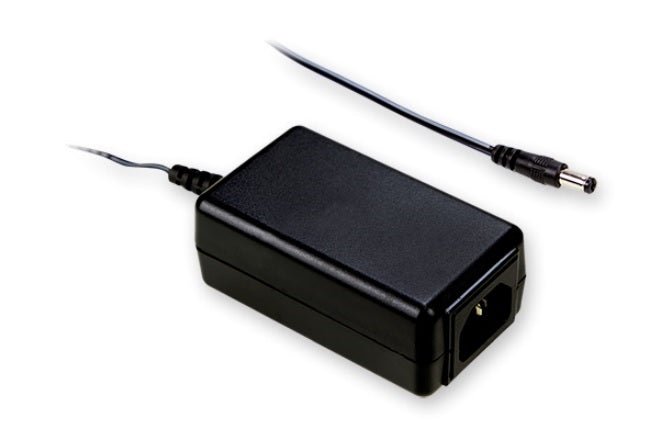

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SGAS15A09-P1J Power Supply 15W 9V

Name: Mean Well SGAS15A09-P1J Power Supply 15W 9V
Brand: Mean Well
SKU: SGAS15A09-P1J
Price: 16.52 USD
Availability: InStock

SKU:

SGAS15A09-P1J

$16.52 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Extreme small

Universal AC input/Full range

3 pole AC inlet IEC320-C14, Class I power unit

No-load power consumption <0.075W

Energy efficiency Level VI

Comply with EISA 2007/DoE, EU Erp, and Meet CoC Version 5

Fully enclosed plastic case

Protections: Short circuit/ Overload/ Over voltage

Pass LPS

7.5V/18V/48V models available (by request)

Various DC plug quick adapter accessories are available(sold separately)

3 years warranty

General Specification

AC input voltage range	90 ~ 264VAC 127 ~ 370VDC
AC inrush current (max.)	Cold start, 30A at 115VAC; 50A at 230VAC
Setup, rise, hold up time	3000ms, 50ms, 10ms at 230VAC input
Overload protection	105~250% rated output power, hiccup mode, auto-recovery
Over-voltage protection	>120% rated output voltage
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:1.5KVAC
Working temperature	-20~+70°C
Safety standards	UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable	UL2468 20AWG 1200mm for 5-12V, UL2468 24AWG 1200mm for 15V, UL2468 24AWG 1800mm for 24V
Dimension (LxWxH)	85.7x 50.9x 33.8mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type, C+

Specifications

Brand

Mean Well
Power Rating

15 Watt
Output Voltage

9 Volt
Rated Current

1.66 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

Non Dimmable
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

3.37 in
Width

2 in
Height

1.33 in
Weight

0.33 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input/Full range

3 pole AC inlet IEC320-C14, Class I power unit

No-load power consumption <0.075W

Energy efficiency Level VI

Comply with EISA 2007/DoE, EU Erp, and Meet CoC Version 5

Fully enclosed plastic case

Protections: Short circuit/ Overload/ Over voltage

Pass LPS

7.5V/18V/48V models available (by request)

Various DC plug quick adapter accessories are available(sold separately)

3 years warranty

General Specification

AC input voltage range

90 ~ 264VAC 127 ~ 370VDC

AC inrush current (max.)

Cold start, 30A at 115VAC; 50A at 230VAC

Setup, rise, hold up time

3000ms, 50ms, 10ms at 230VAC input

Overload protection

105~250% rated output power, hiccup mode, auto-recovery

Over-voltage protection

>120% rated output voltage

Withstand voltage

I/P-O/P:3KVAC, I/P-FG:1.5KVAC

Working temperature

-20~+70°C

Safety standards

UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved

EMC standards

EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Length of output cable

UL2468 20AWG 1200mm for 5-12V, UL2468 24AWG 1200mm for 15V, UL2468 24AWG 1800mm for 24V

Dimension (LxWxH)

85.7x 50.9x 33.8mm

Standard DC plug

P1J: 2.1ID x 5.5OD x 11L, tuning fork type, C+
