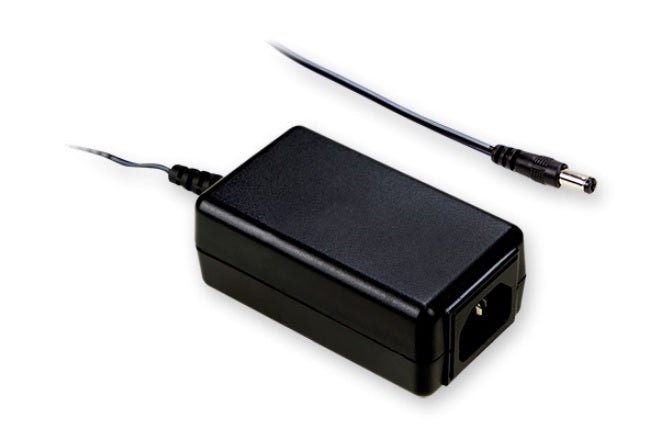

Mean Well SGAS15A15-P1J Power Supply 15W 15V
The SGAS15A15 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.37 in
-
Width2 in
-
Height1.33 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15A15-P1J for a 15V automation module or industrial control device?
Yes, if the device requires 15V and draws no more than 1A. The power supply is rated for 15W total output, which sets the limit for compatible 15V loads.
Is this 15V power supply suitable for a low-power embedded system?
It can support a 15V embedded system that stays within 1A and 15W. The compact 85.7 x 50.9 x 33.8 mm form factor may also help in space-constrained equipment.
Can this model power 15V lab, monitoring, or interface electronics?
It is appropriate for 15V electronic devices in those categories as long as the load does not exceed 1A. The 90-264VAC input range supports use across a wide range of AC mains conditions.
How do I confirm this 15V supply is compatible with my equipment?
The connected device must require 15V and remain at or below 1A, with total consumption not exceeding 15W. If either the current draw or power requirement is higher, a larger model is needed.
Can the SGAS15A15-P1J handle challenging ambient temperatures?
Its specified operating temperature range is -20°C to +70°C. The provided specs do not state an IP rating, so environmental exposure protection is not defined here.
