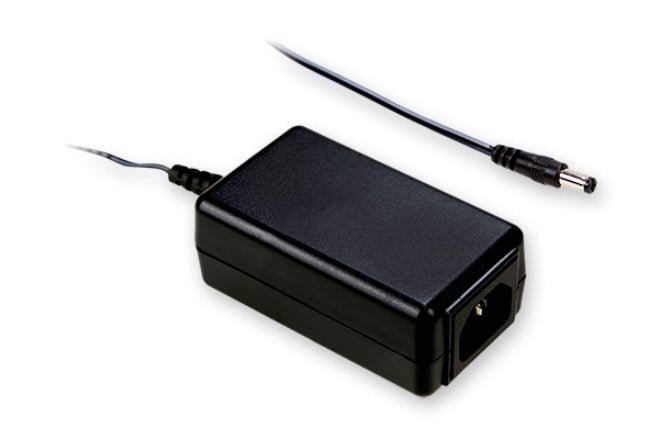

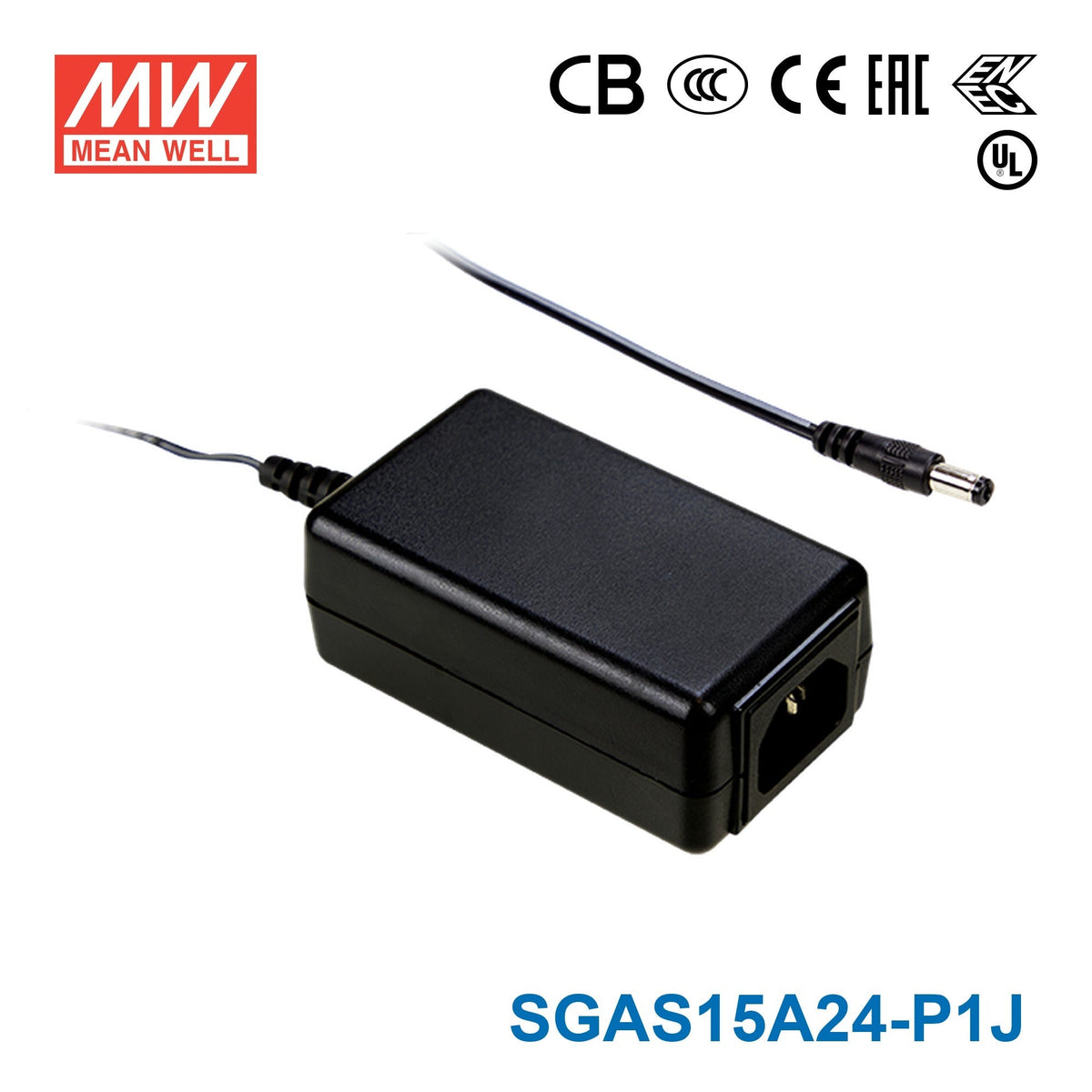

Mean Well SGAS15A24-P1J Power Supply 15W 24V
The SGAS15A24 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.37 in
-
Width2 in
-
Height1.33 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15A24-P1J for a 24V PLC accessory or industrial sensor?
This model provides 24V output at up to 0.62A and 15W. It can be used for low-power 24V PLC accessories, sensors, or control components that stay within those ratings.
Is this 24V supply suitable for small automation or monitoring devices?
It is a fit for 24V automation or monitoring electronics that do not exceed 0.62A. The 15W output rating defines the maximum supported load for those applications.
Can this power supply run a 24V communications or interface module?
Yes, if the module is designed for 24V and its power draw stays within 0.62A and 15W. The wide 90-264VAC input range is also useful for equipment deployed in different AC power environments.
What kind of 24V load is this model sized for?
It is sized for lighter 24V loads up to 0.62A, with total output capped at 15W. That makes it better suited to low-power control or interface devices than higher-draw 24V equipment.
Is the SGAS15A24-P1J appropriate for outdoor conditions?
The listed operating temperature range is -20°C to +70°C. No IP rating appears in the provided specs, so outdoor use should not be assumed without confirming the enclosure protection level separately.
