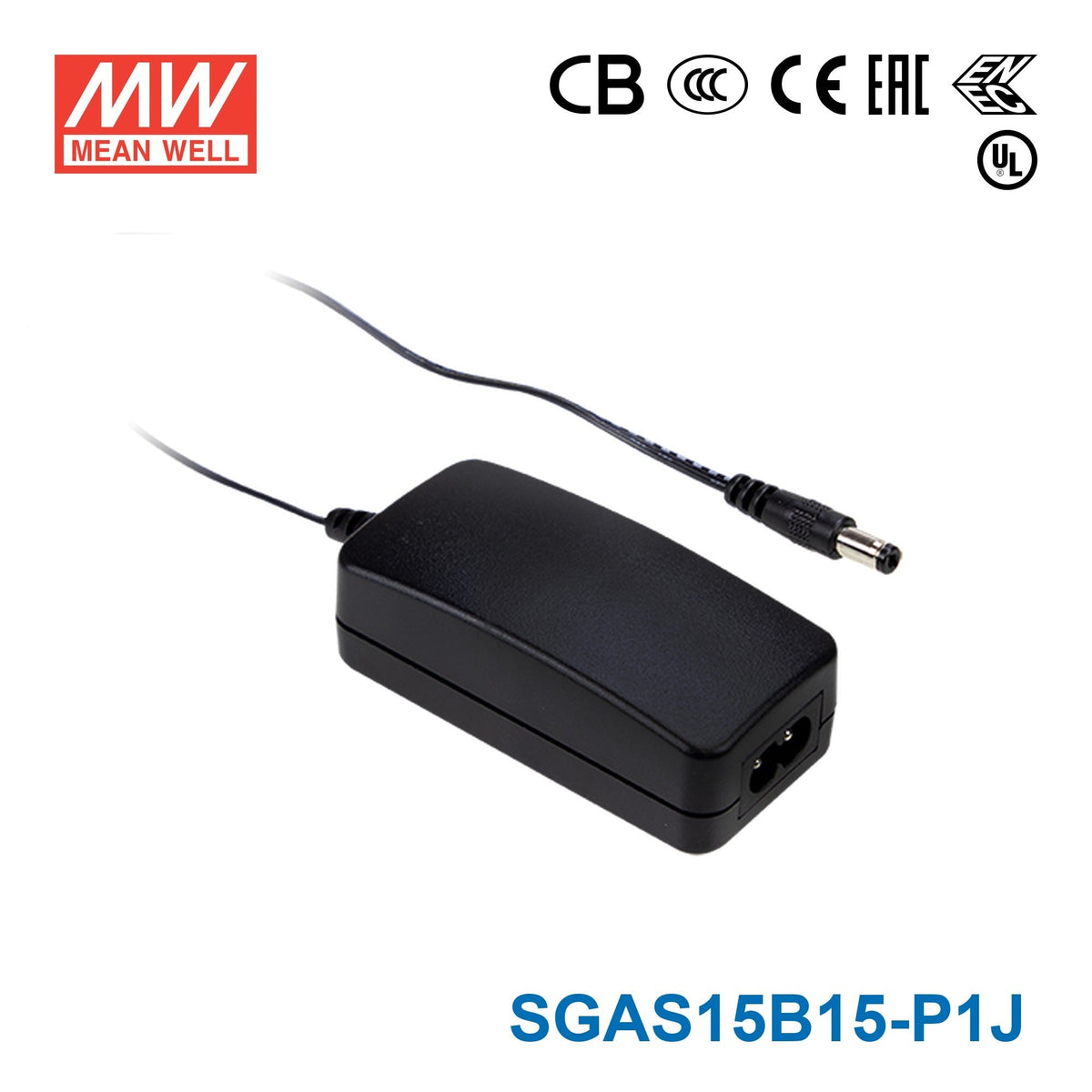

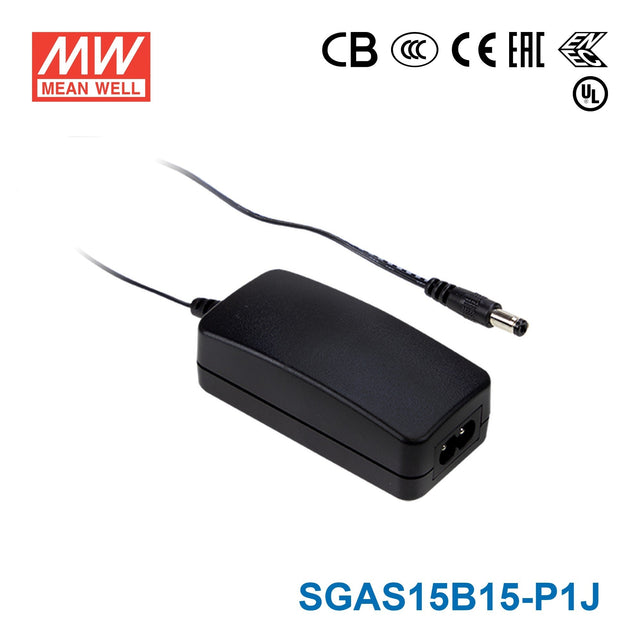

Mean Well SGAS15B15-P1J Power Supply 15W 15V 1A
Overview
SGAS15B15-P1J is the 15V output model of this series: rated current 1.00A, rated power 15W, typical efficiency 85%.
SGAS15B is a 15W compact size highly reliable, desktop style single-output green adaptor series, which is compact and convenient for carry. This product is a classⅡ power unit (no FG) equipped with the standard IEC320-C8 AC inlet and accepting the input range from 90VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 24VDC that it can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGAS15B is compliant with USA EISA 2007/DoE, EU ErP, and meet Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Features
- Extreme small
- Universal AC input / Full range
- 2 pole AC inlet IEC320-C8,Class Ⅱ power unit
- No load power consumption<0.075W
- Energy efficiency LevelⅥ
- Comply with EISA 2007/DoE,EU ErP and meet CoC Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- 7.5V / 18V / 48V models available (by request)
- Various DC plug quick adapter accessory available
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- SGAS15B15
- DC VOLTAGENote.2
- 15V
- RATED CURRENT
- 1.00A
- CURRENT RANGE
- 0 ~ 1.00A
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.3
- 80mVp-p
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±3.0%
- SETUP, RISE, HOLD UP TIME
- 3000ms, 50ms, 10ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 135 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 85%
- AC CURRENT
- 0.4A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 30A/ 115VAC 50A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- >120% rated output voltage Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Compliance to EN55022 Class B, EN61000-3-2,3
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 12hours / day
- MTBF
- 507Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 80*39*27.7mm (L*W*H)
- PACKING
- 130g ; 72pcs / 11Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes7
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 0% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Datasheet1
Certificates6
Test reports1
FAQ
Can I use the SGAS15B15-P1J for 15V instrumentation or control electronics?
Yes, if the device requires constant-voltage 15V DC and draws no more than 1A. This model is rated for 15W total output, which suits lower-power instrumentation and control circuits built for 15V input.
Is this 15V power supply suitable for analog modules or signal-conditioning hardware?
It can be a fit for 15V analog or signal-conditioning equipment when the load stays within 15W and 1A. Because it is a constant-voltage supply, it should be matched only with hardware specified for a fixed 15V DC source.
Can the SGAS15B15-P1J be used for small industrial test or measurement devices?
It is suitable for compact 15V test or measurement devices that operate within the 1A maximum output current. The wide 90-264VAC input range also helps when the equipment may be deployed in different AC mains environments.
Would this model work for a 15V embedded or automation subsystem with modest power draw?
Yes, when the subsystem is designed for constant-voltage 15V DC and needs no more than 15W. For selection, the main electrical limits are 15V output and 1A maximum current.
Can this 15V power supply be used in exposed or dirty environments?
The stated operating temperature range is -20°C to +70°C, so the thermal range is defined. No IP rating is listed in the provided specs, so ingress protection for water or dust is not specified here and should be addressed at the system level.
