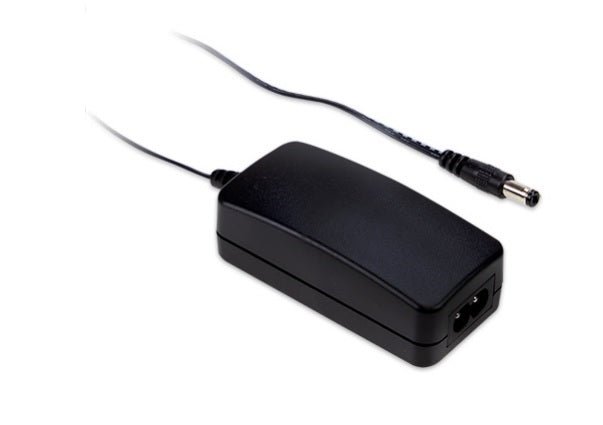

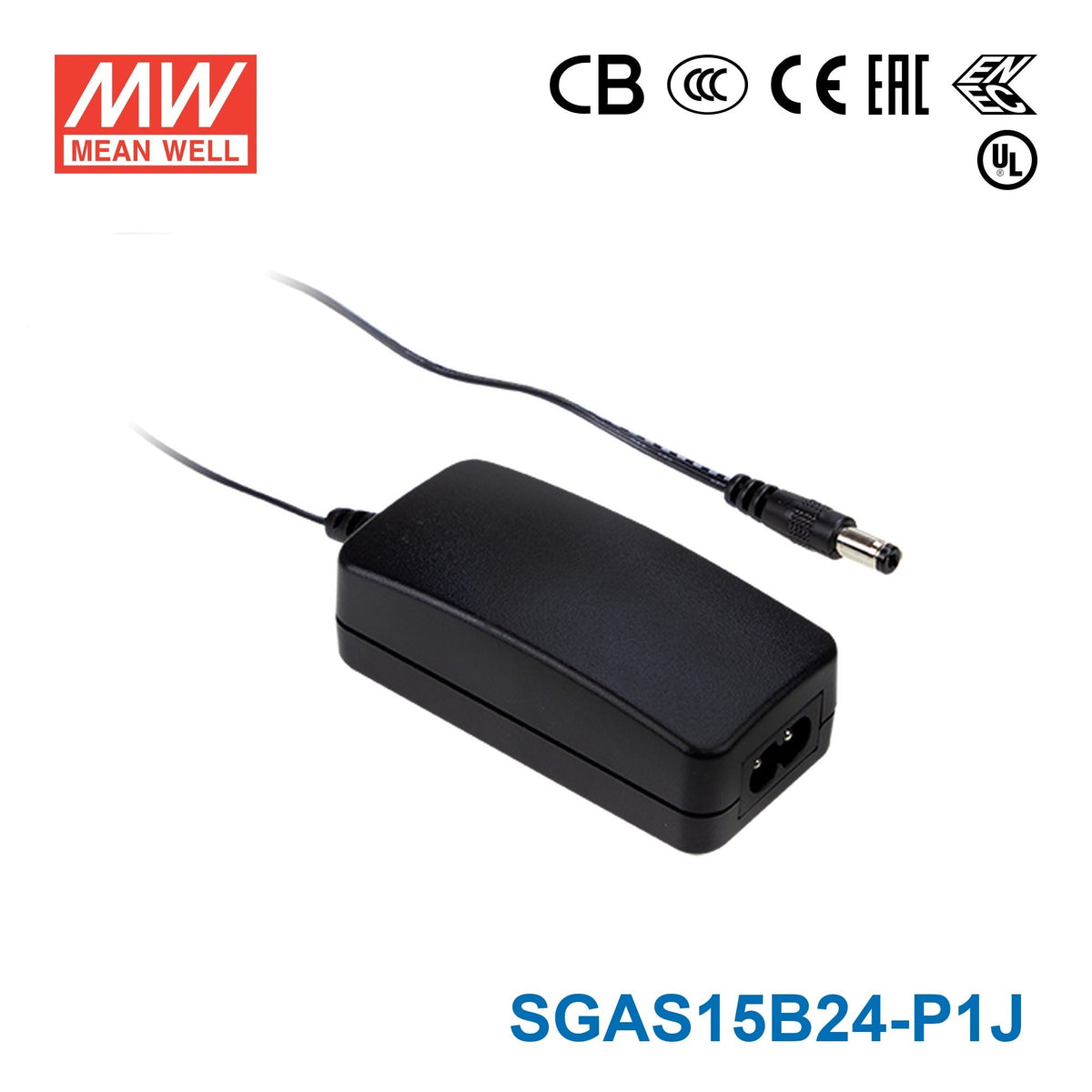

Mean Well SGAS15B24-P1J Power Supply 15W 24V
The SGAS15B24 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.15 in
-
Width1.54 in
-
Height1.09 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15B24-P1J for a small 24V PLC accessory or industrial I/O device?
Yes, if the equipment needs constant-voltage 24V DC and draws no more than 0.62A. This unit is rated for 15W, so it fits lower-power 24V accessories rather than higher-load PLC peripherals.
Is this 24V power supply suitable for compact sensors, relays, or automation electronics?
It can support smaller 24V automation electronics when the total current stays within 0.62A and the total power stays within 15W. The fixed 24V constant-voltage output is intended for devices designed around a regulated 24V rail.
Can the SGAS15B24-P1J power a low-power industrial networking or communications device that runs on 24V DC?
It is suitable for compact 24V communications or networking hardware that remains within the 15W and 0.62A output limits. The 90-264VAC input range can also be useful where AC input conditions vary across installations.
Would this model work for a small 24V actuator control or monitoring circuit?
It can be used for lower-power 24V control or monitoring circuits that are specified for constant-voltage input and stay within 0.62A. For selection, the important limits are the 24V output and 15W maximum power.
Is the SGAS15B24-P1J appropriate for outdoor or washdown locations?
The provided specs define an operating temperature range of -20°C to +70°C, but they do not include an IP rating. That means the temperature range is stated, while resistance to water and dust is not specified in the listed data.
