Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

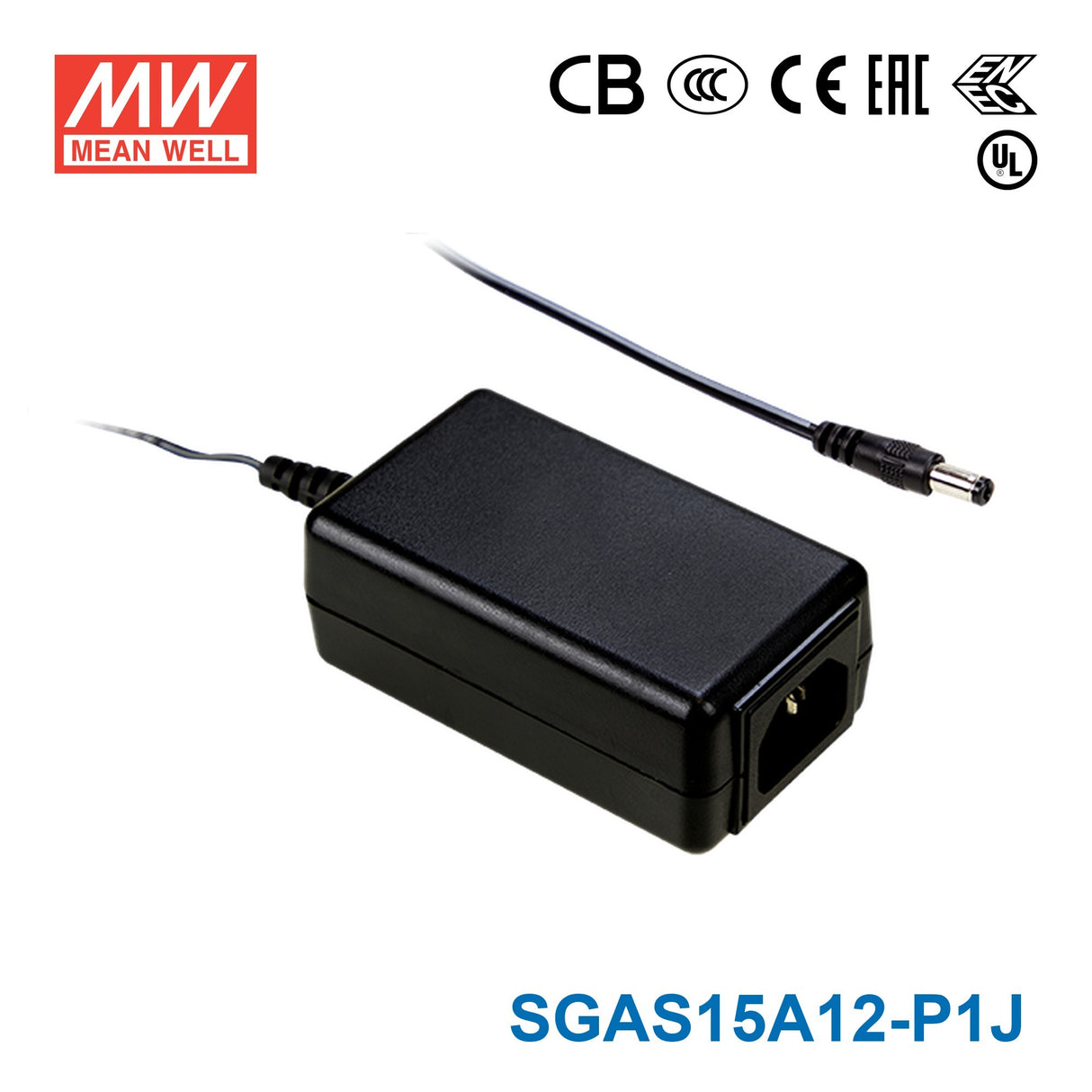

Mean Well SGAS15A12-P1J Power Supply 15W 12V
The SGAS15A12 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.37 in
-
Width2 in
-
Height1.33 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15A12-P1J for a 12V industrial sensor or controller?
This unit provides 12V output at up to 1.25A with a 15W rating. That makes it suitable for 12V sensors, controllers, or interface devices that stay within those electrical limits.
Is this 12V model suitable for compact CCTV or access control electronics?
It can fit 12V electronic hardware that requires no more than 1.25A and 15W. Buyers commonly look for 12V supplies in those categories, but the deciding factors are the voltage match and load staying within the rated output.
Can this power supply run a 12V embedded or IoT gateway?
It is a possible fit for 12V embedded systems or gateways that remain at or below 1.25A. The 90-264VAC input also allows operation from a broad AC input range.
How much 12V load can this power supply support?
The maximum rated output is 1.25A at 12V, with total power limited to 15W. Any 12V device or group of devices must stay within both of those limits.
Is the SGAS15A12-P1J meant for indoor or outdoor use?
The operating temperature range is -20°C to +70°C, so temperature tolerance is specified. An IP rating is not provided in the specs here, so outdoor suitability cannot be confirmed from this data alone.
