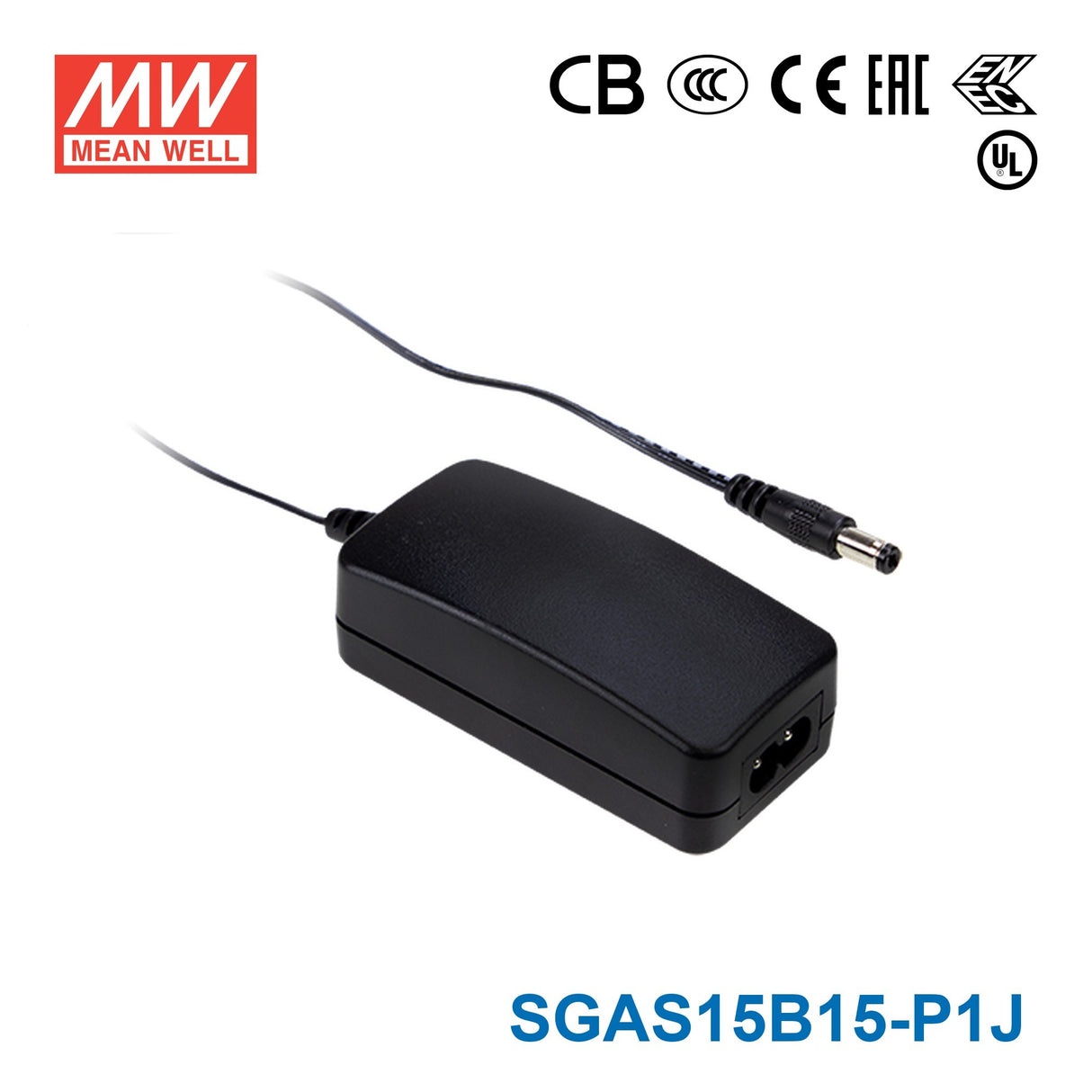

Mean Well SGAS15B15-P1J Power Supply 15W 15V
The SGAS15B15 is a 15W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ent users from electric hazards. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.15 in
-
Width1.54 in
-
Height1.09 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the SGAS15B15-P1J for 15V instrumentation or control electronics?
Yes, if the device requires constant-voltage 15V DC and draws no more than 1A. This model is rated for 15W total output, which suits lower-power instrumentation and control circuits built for 15V input.
Is this 15V power supply suitable for analog modules or signal-conditioning hardware?
It can be a fit for 15V analog or signal-conditioning equipment when the load stays within 15W and 1A. Because it is a constant-voltage supply, it should be matched only with hardware specified for a fixed 15V DC source.
Can the SGAS15B15-P1J be used for small industrial test or measurement devices?
It is suitable for compact 15V test or measurement devices that operate within the 1A maximum output current. The wide 90-264VAC input range also helps when the equipment may be deployed in different AC mains environments.
Would this model work for a 15V embedded or automation subsystem with modest power draw?
Yes, when the subsystem is designed for constant-voltage 15V DC and needs no more than 15W. For selection, the main electrical limits are 15V output and 1A maximum current.
Can this 15V power supply be used in exposed or dirty environments?
The stated operating temperature range is -20°C to +70°C, so the thermal range is defined. No IP rating is listed in the provided specs, so ingress protection for water or dust is not specified here and should be addressed at the system level.
